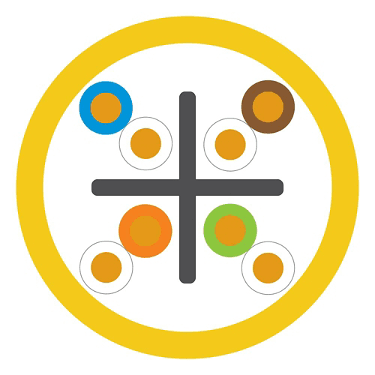

Berk-Tek (Leviton) 10167309, LANmark 2000 Category 6+ Plenum UTP Yellow

Berk-Tek (Leviton) 10167309 LANmark-2000 is a Cat 6 U/UTP data copper cable with 23 AWG solid conductors and a CMP plenum rating. Supplied in Yellow, it comes as a 1000 ft (305 m) Reel in a Box for structured cabling installations. The cable is characterized to 600 MHz and supports full duplex operation over 4 pair. Reduced attenuation (Insertion Loss) is ETL verified to ANSI/TIA/EIA-568-C.2, and it is Category 6 standard RoHS Compliant.

Technical Specs

Product family	Copper Cable
Brand	LANMARK-2000
Category rating	Cat 6
Type	Data
Construction	U/UTP
Shielding	U/UTP - Unshielded Twisted Pair
Conductor size	23 AWG (American Wire Gauge)
Conductor type	Solid
Pair count	4 pair
Flame rating	CMP
Fire rating	Plenum
Color	Yellow
Length	1000 ft (305 m)
Packaging	Reel in a Box
Compliance	Category 6 standard RoHS Compliant
Insertion loss verification	Reduced attenuation (Insertion Loss) ETL verified to ANSI/TIA/EIA-568-C.2
Frequency characterization	Characterized to 600 MHz, 350 MHz greater than the standard
Balance characteristics	Documented balance characteristics (LCL/TCL, EL TCTL)
Duplex capability	Supports full duplex operation over four cable pairs
Usable bandwidth	Increased usable bandwidth vs. the category 6 standard
ACR	Improved ACR means stronger signal reaches the receiver, resulting in cleaner data and video transmission

Applications

• Designed for high-performance voice, video, and data networks where consistent signal integrity is required.
• Enables full duplex operation over 4 pair for network links that need simultaneous send/receive performance.
• Suitable for plenum installations that require a CMP flame rating and a Plenum fire rating.
• Helps maintain signal integrity in high-noise environments with documented balance characteristics and reduced attenuation verified to ANSI/TIA/EIA-568-C.2.
• Adds performance margin to reliably support Gigabit Ethernet in high-noise environments.
• Delivers bandwidth required for multimedia, broadband video analog video, and other future applications.

Berk-Tek® is a premium brand of Leviton® Manufacturing Co., Inc., known for high-quality networking and cable solutions. All trademarks are the property of their respective owners.
