Berk-Tek (Leviton) 10170669, LANmark 2000 Category 6+ Plenum UTP Green

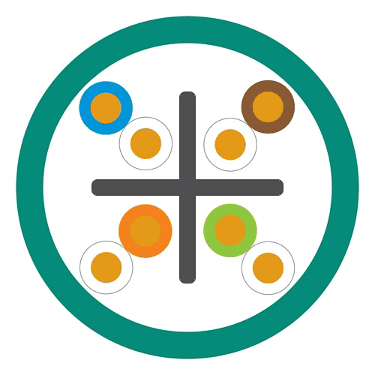

Berk-Tek (Leviton) 10170669 LANMARK-2000 is a Category 6 U/UTP copper data cable with 23 AWG solid conductors in a 4 pair construction. It has a green jacket with a CMP plenum fire rating and is supplied in a 1000 ft (305 m) Reel in a Box package. The cable is characterized to 600 MHz and includes documented balance characteristics (LCL/TCL, EL TCTL) with reduced attenuation (Insertion Loss) ETL verified to ANSI/TIA/EIA-568-C.2.

Technical Specs

Product family	Copper Cable
Brand	LANMARK-2000
Type	Data
Category rating	Cat 6
Construction	U/UTP
Shielded	U/UTP - Unshielded Twisted Pair
Conductor size	23 AWG (American Wire Gauge)
Conductor type	Solid
Conductor/pair count	4 Pair
Color	Green
Jacket color	Green
Flame rating	CMP
Fire rating	Plenum
Length	1000 ft (305 m)
Packaging	Reel in a Box
Characterized frequency	600 MHz
Frequency margin	350 MHz greater than the standard
Balance characteristics	Documented balance characteristics (LCL/TCL, EL TCTL)
Attenuation verification	Reduced attenuation (Insertion Loss) ETL verified to ANSI/TIA/EIA-568-C.2
Duplex operation	Capable of full duplex operation over four cable pairs
Usable bandwidth	Increased usable bandwidth vs. the category 6 standard
ACR performance	Improved ACR means a stronger signal reaches the receiver, resulting in cleaner data and video transmission
Noise environment support	Provides additional performance margin to reliably support Gigabit Ethernet in high-noise environments
Application bandwidth statement	Provides bandwidth required for multimedia, broadband video analog video and other future applications
Emissions and errors statement	Balance characteristics improve overall cable performance and reduce cable emissions, resulting in reduced transmission errors. Reduceddiameter allows for more efficient space utilization
Compliance statement	Category 6 standard RoHS Compliant

Applications

• It supports reliable voice, video, and data transmission on a single infrastructure.
• In high-noise environments, it helps maintain strong signals for cleaner data and video transmission.
• Additional performance margin helps reliably support Gigabit Ethernet.
• The bandwidth supports multimedia, broadband video analog video, and other future applications.

Berk-Tek® is a premium brand of Leviton® Manufacturing Co., Inc., known for high-quality networking and cable solutions. All trademarks are the property of their respective owners.
