Berk-Tek (Leviton) 11142234, 23 4P UTP CMP Solid BC CAT6A 0.230 YELLOW

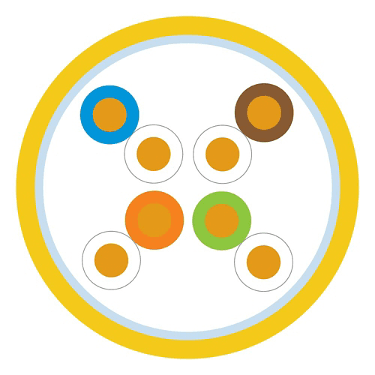

Berk-Tek (Leviton) 11142234 is a Cat 6A U/UTP data cable with 23 AWG solid conductors and a yellow plenum-rated jacket. It features a reduced diameter of 0.230" (5.84 mm) for easier routing and cable management in high-density installations. Performance highlights include 8 dB PSANEXT and PSAACRF margin to Cat 6A requirements and a Limited Power (LP) rating of 0.7 A. Supplied on a 1000 ft (305 m) reel.

Technical Specs

Brand	Global RDT
Product family	Copper Cable
RoHS compliant	Yes
Type	Data
Category rating	Cat 6A
Construction	U/UTP
Shielding	U/UTP - Unshielded Twisted Pair
Conductor size	23 AWG (American Wire Gauge)
Conductor type	Solid
Pair count	4 pair
Flame rating	CMP
Fire rating	Plenum
Color	Yellow
Jacket color	Yellow
Listing temperature	105 C (221 F)
8 dB PSANEXT and PSAACRF margin	to Cat 6A requirements
Internal parameters	compliant with Cat 6A standards
Limited Power (LP) rating	0.7 A
Length	1000 ft (305 m)
Packaging	Reel

Applications

• Designed for high-density plenum installations where space and performance both matter.
• Its reduced diameter supports flexibility, cable management, and tray-fill efficiency in crowded pathways.
• Use it for PoE deployments where a Limited Power (LP) rating of 0.7 A is required.
• Choose it for 802.11ac wireless, HD video, and IP security cabling.
