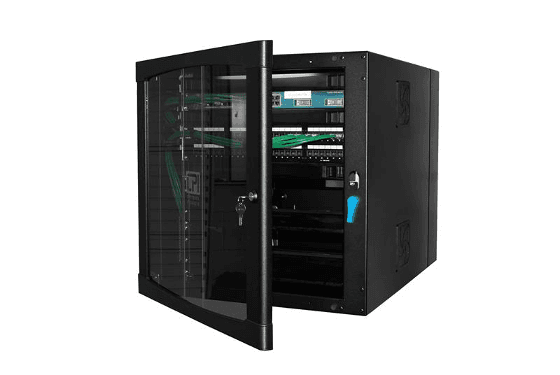

Chatsworth Products 11840-736, CUBE-iT+ Wall Mount Cabinet 18U 36 H x 19 W x 24 D

Chatsworth Products 11840-736 CUBE-iT® Wall-Mount Cabinet is a Gen 3, swing-out enclosure designed to securely house ICT equipment where floor space is limited. It supports 19" EIA mounting with #12-24 tapped rails and provides front and rear service access through a three-part design. A solid metal door with a single CH751 lock helps protect installed gear, and the cabinet is UL® 2416 Listed with a 300 lb (136 kg) load rating. It ships fully assembled and includes rear-panel knockouts and conduit acceptance to simplify cable routing.

Chatsworth Products 11840-736 Key Features

• Gen 3 CUBE-iT® Wall-Mount Cabinet with a three-part, swing-out design for front and rear equipment access.
• Solid metal door with a single CH751 lock and key for front-door access.
• Supports 19" EIA mounting with one pair of adjustable depth 19" EIA threaded equipment mounting rails and #12-24 tapped rails.
• Rear panel includes 1” (25.4 mm) and 3" (76 mm) knockouts and accepts 3/4” (19 mm) and 2.5” (63.5 mm) conduit.
• UL® 2416 Listed with a 300 lb (136 kg) load rating.
• Ships fully assembled for faster installation.

Chatsworth Products 11840-736 Technical Specs

General Product Information

Product family	CUBE-iT® Wall-Mount Cabinet
Generation	Gen 3
Type	Wall-mount
Country of origin	US

Physical Specifications

Door style	Solid metal door
Color	Black
Height	36" (910 mm) 19U
Width	24" (610 mm)
Depth	24" (610 mm)
Rack units	18U
Mounting width	19"
Material	Aluminum/steel mix
Multi-compartment	No

Cable Management & Rear Panel Features

Rear-panel features	Cable tie and attachment points for accessory rack-mount brackets
Cable pass-through	Cable pass-through knockout with optional brush seal supports retrofit installations
Knockout grommets	3” (76 mm) knockouts include edge-protection grommets
Rear panel security	Internal latch mechanism secures the rear panel; slim-profile does not impact cabling space
Rear panel removal	Hinge design allows the installer to remove the rear panel for easier installation on the wall

Thermal Performance

Airflow	Front-to-rear
Optional fan kit	Optional low-decibel (31 dB), dual-fan kit provides quiet operation while cooling equipment

Compliance & Ratings

BABA compliant	Yes
Nema rating	No NEMA rating
Seismic rating	No

Chatsworth Products 11840-736 Applications

• Securely houses ICT equipment in locations where floor space is limited.
• Enables installations that require convenient front and rear service access to mounted equipment.
• Provides protection for installed gear in public areas or equipment rooms using a solid metal door and single CH751 lock.
• Facilitates cable routing through rear-panel knockouts and conduit acceptance, including retrofit installations using the cable pass-through knockout with optional brush seal.

Shipping & Availability

Ship width	29" (74 cm)
Ship length/depth	104" (2642 mm)
Ship height	31" (79 cm)
Shipping weight	128 LB (58.06 kg)
