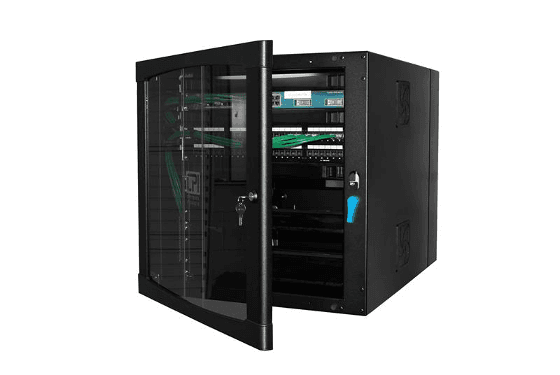

Chatsworth Products 11900-748, CUBE-iT+ Wall Mount Cabinet 26U 48 H x 19 W x 24 D

Chatsworth Products 11900-748 CUBE-iT® Wall-Mount Cabinet Gen 3 is a 26U wall-mount, swing-out enclosure in Black with a tempered glass door. Designed for ICT equipment in public areas or rooms with limited floor space, its three-part design supports service access to both the front and rear of installed gear. It includes one pair of adjustable depth 19" EIA threaded equipment mounting rails with a tapped rail style and #12-24 Tapped Rails, and supports front-to-rear airflow. The cabinet ships fully assembled.

Chatsworth Products 11900-748 Key Features

• CUBE-iT® Wall-Mount Cabinet, Gen 3 wall-mount design with a three-part swing-out structure for front and rear equipment access.
• 26U capacity with 19" mounting width for rack-mounted ICT equipment.
• Tempered glass front door with a single lock and key (CH751) provides access to the entire cabinet.
• One pair of adjustable depth 19" EIA threaded equipment mounting rails with a tapped rail style and #12-24 Tapped Rails.
• Rear panel includes 1” (25.4 mm) and 3" (76 mm) knockouts and accepts 3/4” (19 mm) and 2.5” (63.5 mm) conduit.
• 3” (76 mm) knockouts include edge-protection grommets for cable entry.
• Rear panel includes cable tie and attachment points for accessory rack-mount brackets.
• Cable pass-through knockout with optional brush seal supports retrofit installations.
• Factory-prepped bonding feature helps reduce installation time.
• Front-to-rear airflow design supports an optional low-decibel (31 dB), dual-fan kit for quiet cooling.
• UL® 2416 Listed with a load rating of 300 lb (136 kg).
• BABA compliant: Yes; Country of origin: US.

Chatsworth Products 11900-748 Technical Specs

Product Identification

Series	CUBE-iT® Wall-Mount Cabinet
Generation	Gen 3
Type	Wall-mount

Capacity & Mounting

Rack units	26U
Mounting width	19"

Physical Specifications

Color	Black
Material	Aluminum/steel mix
Height	48" (1220 mm) 26U
Width	24" (610 mm)
Depth	24" (610 mm)
Overall height	Greater than 3’ to 4’
Overall width	Greater than 1’ to 2’
Overall depth	Greater than 1’ to 2’

Rear Panel Security & Installation

Rear panel security	Internal latch mechanism secures the rear panel; slim-profile does not impact cabling space
Rear panel installation	Hinge design allows the rear panel to be removed for easier wall installation

Environmental & Mechanical Ratings

NEMA rating	No NEMA rating
Seismic rating	No
Multi-compartment	No

Chatsworth Products 11900-748 Applications

• Enables secure wall-mounted installation of ICT equipment in public areas where controlled access is needed.
• Works well in rooms with limited floor space by moving equipment off the floor and into a wall-mount enclosure.
• Simplifies service access to installed gear by providing access to both the front and rear through a three-part swing-out design.
• Supports retrofit installations using the cable pass-through knockout with optional brush seal.

Shipping & Availability

• Ship width: 29" (74 cm)
• Ship length/depth: 150" (3810 mm)
• Ship height: 31" (79 cm)
• Shipping weight: 155 LB (70.31 kg)
