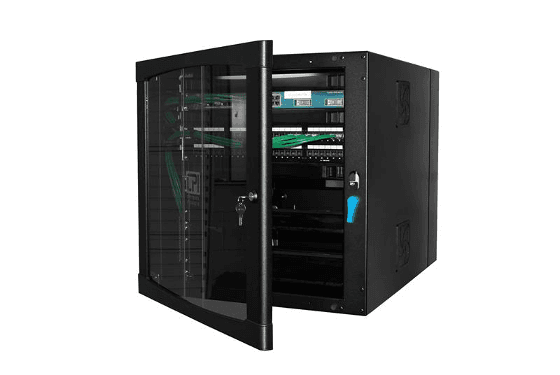

Chatsworth Products 11996-724, CUBE-iT+ Wall Mount Cabinet 12U 24"H x 24"W x 30"D Black

Chatsworth Products 11996-724 CUBE-iT® Wall-Mount Cabinet is a Gen 3, 12U swing-out enclosure designed to securely house ICT equipment where floor space is limited. It measures 24H x 24W x 30D (610 mm x 610 mm x 760 mm) and supports front-to-rear airflow. The cabinet includes adjustable depth 19 EIA threaded mounting rails with #12-24 tapped rails, plus a solid metal door with a single lock and key (CH751). It is UL® 2416 Listed with a 300 lb (136 kg) load rating and ships fully assembled.

Chatsworth Products 11996-724 Key Features

• Gen 3, three-part swing-out design supports access to the front and rear of installed equipment.
• Solid metal door with a single lock and key (CH751) provides access to the entire cabinet.
• Internal latch mechanism secures the rear panel with a slim profile that helps preserve cabling space.
• Hinge design allows the rear panel to be removed for easier wall installation.
• Rear panel includes 1” (25.4 mm) and 3” (76 mm) knockouts and accepts 3/4” (19 mm) and 2.5” (63.5 mm) conduit.
• 3” (76 mm) knockouts include edge-protection grommets.
• Rear panel features cable tie and attachment points for accessory rack-mount brackets.
• Cable pass-through knockout with optional brush seal supports retrofit installations.
• Optional low-decibel (31 dB), dual-fan kit provides quiet operation while cooling equipment.
• Factory-prepped bonding feature helps reduce installation time.

Chatsworth Products 11996-724 Technical Specs

General Product Information

Series	CUBE-iT® Wall-Mount Cabinet
Type	Wall-mount
Rack units	12U
Multi-compartment	No

Mounting & Rack Interface

Mounting width	19"
Mounting rails	One pair of adjustable depth 19 EIA threaded equipment mounting rails
Rail style	Tapped

Physical Characteristics & Dimensions

Color	Black
Material	Aluminum/steel mix
Height	24 (610 mm) 12U
Width	24 (610 mm)
Depth	30 (760 mm)
Overall height range	Greater than 1’ to 2’
Overall width range	Greater than 1’ to 2’
Overall depth range	Greater than 2’ to 3’

Performance & Airflow

Airflow	Front-to-rear
Load rating	300 lb (136 kg)

Environmental & Mechanical Ratings

Nema rating	No NEMA rating
Seismic rating	No

Compliance & Certifications

Compliance	UL® 2416 Listed
BABA compliant	Yes

Origin

Country of origin	US

Chatsworth Products 11996-724 Applications

• Provides secure wall-mounted housing of ICT equipment in locations where floor space is limited.
• Protects installed gear in public areas or equipment rooms using a solid metal door with a single lock and key (CH751).
• Enables service access to both the front and rear of installed equipment through a swing-out enclosure design.
• Supports cable and conduit routing through rear-panel knockouts and conduit acceptance for organized entry into the cabinet.
• Meets retrofit needs where a cable pass-through knockout with an optional brush seal is desired.

Shipping & Availability

• Ship width: 29 (74 cm)
• Ship length/depth: 74 (1880 mm)
• Ship height: 37 (94 cm)
• Shipping weight: 112 LB (50.8 kg)
• Ships fully assembled
