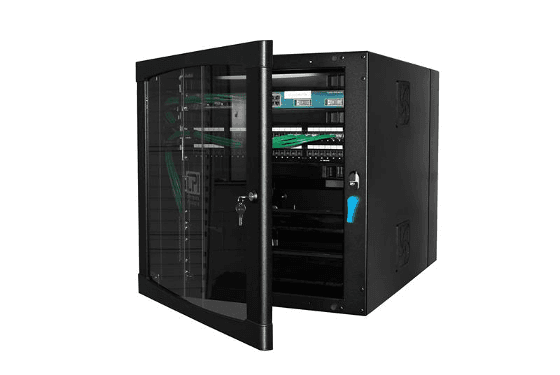

Chatsworth Products 11996-748, CUBE-iT+ Wall Mount Cabinet 26U 48 H x 24 W x 30 D Black

Chatsworth Products 11996-748 CUBE-iT® Wall-Mount Cabinet Gen 3 is a 26U wall-mount enclosure designed for ICT equipment in public areas or rooms with limited floor space. It measures 48H x 24W x 30D (1220 mm x 610 mm x 760 mm) and uses adjustable depth 19 EIA threaded mounting rails with #12-24 tapped rails for flexible equipment installation. A solid metal door with a single lock and key (CH751) helps secure access, and the cabinet supports front-to-rear airflow. It is UL® 2416 Listed with a 300 lb (136 kg) load rating and ships fully assembled.

Chatsworth Products 11996-748 Key Features

• CUBE-iT® Wall-Mount Cabinet, Gen 3 wall-mount design in a 26U, 19 mounting width format.
• Three-part, swing-out design supports access to the front and rear of equipment for service.
• Includes one pair of adjustable depth 19 EIA threaded equipment mounting rails with #12-24 tapped rails.
• Solid metal door with a single lock and key (CH751) secures access to the entire cabinet.
• Rear panel internal latch mechanism secures the rear panel, and the slim profile does not impact cabling space.
• Hinge design allows the installer to remove the rear panel for easier wall installation.
• Rear panel includes 1” (25.4 mm) and 3” (76 mm) knockouts, and can accept 3/4” (19 mm) and 2.5” (63.5 mm) conduit.
• The 3” (76 mm) knockouts include edge-protection grommets.
• Rear panel features cable tie and attachment points for accessory rack-mount brackets.
• Cable pass-through knockout with optional brush seal supports retrofit installations.
• Front-to-rear airflow design; optional low-decibel (31 dB), dual-fan kit provides quiet operation while cooling equipment.
• UL® 2416 Listed with a 300 lb (136 kg) load rating.
• BABA compliant: Yes.

Chatsworth Products 11996-748 Applications

• Secures ICT equipment in public areas where controlled access is needed.
• Works well in rooms with limited floor space by using a wall-mount enclosure format.
• Enables service and maintenance by providing access to both the front and rear of installed equipment.
• Supports retrofit installations through a cable pass-through knockout with an optional brush seal.

Shipping & Availability

• Ship width: 29 (74 cm)
• Ship height: 37 (94 cm)
• Ship length/depth: 150 (3810 mm)
• Shipping weight: 171 LB (77.57 kg)
• Ships fully assembled.
