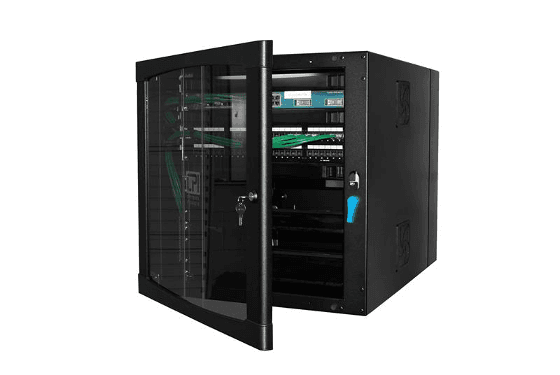

Chatsworth Products 12419-724, CUBE-iT+ Wall Mount Cabinet 12U 24 x 24 x 30 Black

Chatsworth Products 12419-724 is a CUBE-iT® Wall-Mount Cabinet (Gen 3) designed as a swing-out enclosure for securely storing and servicing ICT equipment in space-limited areas. Built in a 12U, 19" EIA format with #12-24 tapped rails, it provides front and rear access to support installation and maintenance. The cabinet measures 24"H x 24"W x 30"D (610 mm x 610 mm x 760 mm) and includes a tempered glass door with a single lock and key (CH751) for full-cabinet access. It is UL® 2416 Listed with a 300 lb (136 kg) load rating.

Chatsworth Products 12419-724 Key Features

• CUBE-iT® Wall-Mount Cabinet, Gen 3, wall-mount design.
• 12U, 19" EIA format with #12-24 tapped rails.
• Three-part, swing-out design supports access to the front and rear of equipment.
• Tempered glass door with a single lock and key (CH751) provides full-cabinet access.
• Internal latch mechanism secures the rear panel; slim profile does not impact cabling space.
• Hinge design allows the installer to remove the rear panel for easier wall installation.
• Rear panel includes 1” (25.4 mm) and 3" (76 mm) knockouts.
• Rear panel can accept 3/4” (19 mm) and 2.5” (63.5 mm) conduit.
• The 3” (76 mm) knockouts include edge-protection grommets.
• Rear panel features cable tie and attachment points for accessory rack-mount brackets.
• Cable pass-through knockout with optional brush seal supports retrofit installations.
• Factory-prepped bonding feature provides convenience and reduces installation time.
• Ships fully assembled.

Chatsworth Products 12419-724 Applications

• Provides secure storage and service access for ICT equipment in space-limited areas.
• Simplifies installation and maintenance by providing front and rear access to equipment.
• Meets needs where a swing-out enclosure is required to access equipment while mounted on a wall.
• Suites public areas and equipment rooms where security and clean aesthetics matter.
• Supports retrofit installations using the cable pass-through knockout with optional brush seal.

Shipping & Availability

• Ship width: 29" (74 cm)
• Ship length/depth: 74" (1880 mm)
• Ship height: 37" (94 cm)
• Shipping weight: 119 LB (53.98 kg)
