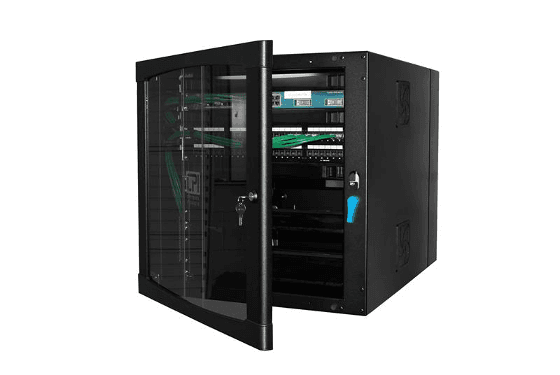

Chatsworth Products 12419-736, Wall Mount Cabinet Plexi Glass Door Black

Chatsworth Products 12419-736 CUBE-iT® Wall-Mount Cabinet Gen 3 is a secure, swing-out wall-mount enclosure for ICT equipment in public areas or space-limited equipment rooms. It supports 19" EIA equipment with 36" (910 mm) 19U rack capacity and includes one pair of adjustable depth 19" EIA threaded equipment mounting rails with #12-24 tapped rails. The tempered glass door uses a single CH751 lock and key for cabinet access, and the three-part design provides front and rear service access. It is UL® 2416 Listed with a 300 lb (136 kg) load rating and ships fully assembled.

Chatsworth Products 12419-736 Key Features

• The three-part, swing-out design supports front and rear access to equipment for serviceability.
• The tempered glass door uses a single CH751 lock and key to provide access to the entire cabinet.
• Built for 19" EIA equipment and includes one pair of adjustable depth 19" EIA threaded equipment mounting rails.
• #12-24 tapped rails and tapped rail style support threaded equipment mounting.
• The rear panel includes 1” (25.4 mm) and 3" (76 mm) knockouts and can accept 3/4” (19 mm) and 2.5” (63.5 mm) conduit.
• UL® 2416 Listed with a 300 lb (136 kg) load rating.
• Ships fully assembled to help speed deployment.

Chatsworth Products 12419-736 Technical Specs

General Product Information

Series	CUBE-iT® Wall-Mount Cabinet
Generation	Gen 3
Type	Wall-mount
Color	Black
Country of origin	US

Dimensions & Mounting

Height	36" (910 mm) 19U
Width	24" (610 mm)
Depth	30" (760 mm)
Mounting width	19"

Construction & Access

Door style	Tempered glass door
Material	Aluminum/steel mix
Internal latch	Internal latch mechanism secures the rear panel; slim-profile does not impact cabling space
Rear panel removal	Hinge design allows the installer to remove the rear panel for easier installation on the wall

Cable Entry, Management & Bonding

Knockout grommets	The 3” (76 mm) knockouts include edge-protection grommets
Rear panel attachment points	Rear panel features cable tie and attachment points for accessory rack-mount brackets
Cable pass-through	Cable pass-through knockout with optional brush seal makes it ideal for retrofit installations
Bonding	Factory-prepped bonding feature provides convenience and reduces installation time

Airflow & Cooling

Airflow	Front-to-rear
Optional fan kit	Optional low-decibel (31 dB), dual-fan kit provides quiet operation while cooling equipment

Compliance & Ratings

BABA compliant	Yes
Nema rating	No NEMA rating
Seismic rating	No

Chatsworth Products 12419-736 Applications

• Ideal for ICT equipment installations in public areas where a secure enclosure helps protect installed gear.
• Works well in space-limited equipment rooms where a wall-mount cabinet supports organized equipment placement.
• Supports retrofit installations using the cable pass-through knockout with optional brush seal.
• Allows flexible cable and conduit entry through rear-panel knockouts for routing into the cabinet.
• Simplifies servicing by providing convenient front and rear access to installed equipment.

Shipping & Availability

Ship width	29" (74 cm)
Ship length/depth	104" (2642 mm)
Ship height	37" (94 cm)
Shipping weight	151 LB (68.49 kg)
