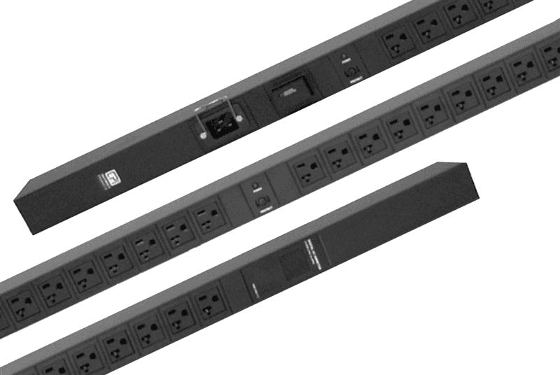

Chatsworth Products 12848-758, Power Strip 20A 120V L5-20P 10ft Cord

Chatsworth Products 12848-758 is a metered, surge-protected vertical power strip for power distribution along the full height of cabinets 4’ high and taller. It supports 110-125 Volt single-phase operation at 20 Amp and 1.9 kW, using a NEMA L5-20P input plug and (24) 5-20R outlets. An in-line digital voltage and current ammeter with display shows real-time usage to help monitor load and remaining capacity before adding devices.

Chatsworth Products 12848-758 Technical Specs

Electrical & Power

Type	Metered Power Strip
Voltage	110-125 Volt
Phase	Single-Phase
Current Rating	20 Amp
Power Rating	1.9 kW

Protection, Breakers & Metering

Protection	Surge-protected
Breakers	2 x 10A Breaker
Metering	In-line digital voltage and current ammeter with display

Input & Output Connections

Input Plug	NEMA L5-20P
Outlets	(24) 5-20R Outlets

Physical Characteristics

Dimensions	66.0"H (1676 mm) x 1.7"W (43 mm) x 1.7"D (43 mm)
Color	Black

Country of Origin

Country of Origin	CN

Chatsworth Products 12848-758 Applications

• Distributes power vertically along the full height of cabinets 4’ high and taller.
• Connects rack equipment through (24) 5-20R outlets.
• Monitors voltage and current used by attached equipment to assess remaining capacity before adding devices.

Shipping & Availability

Ship Width	3" (8 cm)
Ship Length/Depth	183" (4648 mm)
Ship Height	2" (5 cm)
Shipping Weight	12 LB (5.44 kg)
