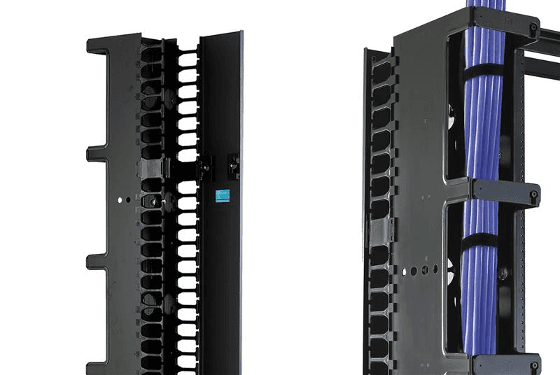

Chatsworth Products 30162-703, CCS Black 6W x 7’H x 12.24D

Chatsworth Products 30162-703 CCS Combination Cabling Section is a double-sided vertical cable manager for organizing patch cords and cable bundles in a 45U rack environment. The front side uses 1U plastic cable guides for clean fanning and routing, while the rear stays open for quick access to bundles feeding the back of patch panels. It includes edge-protected pass-through ports for front-to-back routing and center vertical slots that support neat bundling with optional Saf-T-Grip® Cable Management Straps. Designed for 3"D (80 mm) racks, it measures 7'H (2.1 m) x 6"W (150 mm) x 12.24"D (311 mm) and comes in Black with mounting hardware and doors included.

Chatsworth Products 30162-703 Technical Specs

General Product Information

Product type	CCS Combination Cabling Section
Manager design	Double-sided manager with MCS-style front side and VCS-style back side
Color	Black

Rack Compatibility & Mounting

Rack compatibility	Use with: 45U rack
Rack depth	For 3"D (80 mm) racks
Frame attachment	Attach to Standard Racks, Universal Racks, QuadraRack or Adjustable QuadraRack frames

Dimensions

Height	7'H (2.1 m)
Width	6"W (150 mm)
Depth	12.24"D (311 mm)

Cable Management Features

Front cable guides	1U cable guides on the front designed for fanning and managing patch cords
Rear access	Open cabling section on the rear provides easy access and routes cable bundles feeding into the back of patch panels
Pass-through ports	Edge-protected pass-through ports for routing cable from front to back
Center slots	Vertical slots along the center separator secure cable bundles neatly with optional Saf-T-Grip® Cable Management Straps
Door/cover	Innovative SwitchGate Door/Cover (front) opens from the right or left and can be removed so cable does not have to thread through guides

Environmental & Mechanical Ratings

Flame resistance	Plastic cable guides meet UL 94V-O flame resistant standards

Compliance & Certifications

BABA compliant	Yes
Country of origin	US

Chatsworth Products 30162-703 Applications

• Organizes patch cords and cable bundles in a 45U rack environment to support cleaner routing and easier cable identification.
• Keeps patching areas orderly by supporting front-side fanning and routing to reduce congestion around rack equipment.
• Simplifies moves, adds, and changes by providing open rear access to bundles feeding the back of patch panels.
• Maintains controlled, protected cable paths by enabling front-to-back routing through edge-protected pass-through ports.
• Supports neat vertical bundling using center slots, with the option to secure bundles using Saf-T-Grip® Cable Management Straps.
• Fits installations where the manager needs to attach to Standard Racks, Universal Racks, QuadraRack, or Adjustable QuadraRack frames.

Shipping & Availability

Ship width	18" (46 cm)
Ship length/depth	229" (5817 mm)
Ship height	7" (18 cm)
Shipping weight	50 LB (22.68 kg)
