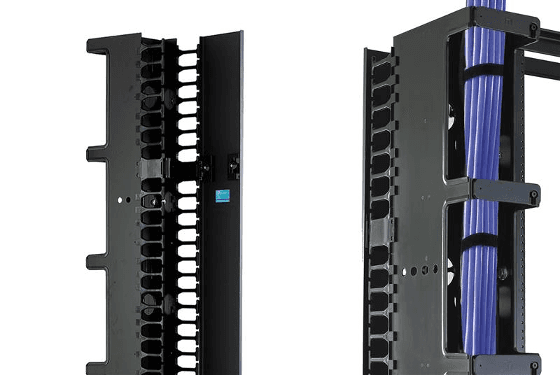

Chatsworth Products 30163-703, CCS Combination Cabling System Black 10W x 7’H x 12.24D

Chatsworth Products 30163-703 CCS Combination Cabling Section is a double-sided vertical cable management solution for high-density patching environments. It features an MCS-style front and a VCS-style rear, with 1U plastic cable guides on the front to fan and control patch cords. The open rear section keeps cable bundles accessible as they feed into the back of patch panels, and edge-protected pass-through ports support routing from front to back. Designed for 45U Rack installations and for 3"D (80 mm) Racks, it measures 7'H (2.1 m) x 10"W (250 mm) x 12.24"D (311 mm) and comes in Black.

Chatsworth Products 30163-703 Key Features

• Provides double-sided vertical cable management with an MCS-style front side and a VCS-style back side.
• Uses 1U plastic cable guides on the front to fan and manage patch cords.
• Keeps cable bundles accessible with an open rear cabling section for clean routing into the back of patch panels.
• Supports front-to-back routing through edge-protected pass-through ports.
• Includes vertical slots along the center separator to help secure cable bundles with optional Saf-T-Grip® Cable Management Straps.
• The SwitchGate door/cover (front) opens from the right or left and can be removed to simplify cable moves, adds, and changes.
• Built with riveted and bolted aluminum and plastic construction.
• Plastic cable guides meet UL 94V-O flame resistant standards.
• BABA compliant: Yes.
• Mounting hardware and doors are included.

Chatsworth Products 30163-703 Technical Specs

Physical & Dimensional Specs

Designed for	45U Rack
Type	For 3"D (80 mm) Racks
Height	7'H (2.1 m)
Width	10"W (250 mm)
Depth	12.24"D (311 mm)
Color	Black

Origin

Country of origin	US

Chatsworth Products 30163-703 Applications

• Organizes patch cords on the front while keeping rear cable bundles accessible in high-density patching environments.
• Maintains cleaner routing and easier access as cabling feeds into the back of patch panels during changes.
• Fits 45U Rack installations and attaches to Standard Racks, Universal Racks, QuadraRack, or Adjustable QuadraRack frames.
• Streamlines front-to-back routing through pass-through ports to support more efficient cable pathways.
• Simplifies day-to-day maintenance because the SwitchGate door/cover can open from either side or be removed for easier cable moves, adds, and changes.

Shipping & Availability

Ship length/depth	224" (5690 mm)
Ship width	21" (53 cm)
Ship height	14" (36 cm)
Shipping weight	45 LB (20.41 kg)
