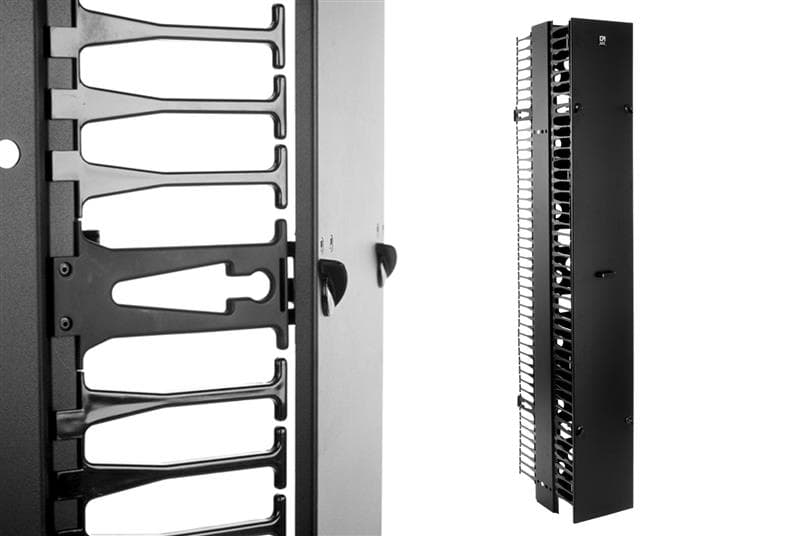

Chatsworth Products 40096-703, EFX Master Cabling Section Extended Fingers Black

Chatsworth Products 40096-703 MCS - EFX Master Cabling Section Extended Fingers is a vertical finger-duct cable management solution designed for use with a 45U Rack. It aligns cable guides at 1U intervals to match rack unit spacing, helping keep patch cords organized and accessible while reducing the need for horizontal cable managers. This black cabling section measures 7'H (2.1 m) x 10W (250 mm) x 21.23D (539.2 mm), is preassembled, and includes a sturdy, reversible aluminum SwitchGate Door/Cover with handle. It uses UL 94V-0 fire-rated composite materials for Plenum applications.

Chatsworth Products 40096-703 Technical Specs

Compatibility & Cable Management Configuration

Use with	45U Rack
Cable management mounting	Vertical
Cable management type	Finger duct
Cable guide spacing	1U intervals
Pass-through ports	Edge-protected pass-through ports and vertical slots to secure cable with optional Saf-T-Grip® straps on double-sided versions

Capacity & Performance

Cable capacity	288 to 1,052 Cat 5e Cable capacity (with 40% fill) per side

Dimensions & Physical Specifications

Overall size	7'H (2.1 m) x 10W (250 mm) x 21.23D (539.2 mm)
Height	7' (2.1 m)
Width	10 (254 mm)
Depth	21.2 (539 mm)
Color	Black

Materials, Construction & Mechanical Features

Material rating	UL 94V-0 fire-rated composite materials for use in Plenum areas
Door/Cover	Sturdy, reversible aluminum SwitchGate Door/Cover with handle included
Assembly	Preassembled for easy installation and a more cohesive appearance

Compliance & Origin

Country of origin	US
BABA compliant	Yes

Chatsworth Products 40096-703 Applications

• Enables vertical cable routing in a 45U Rack by aligning cable guides at 1U intervals to match rack unit spacing.
• Keeps patch cords organized and accessible, which can reduce the need for horizontal cable managers.
• Offers edge-protected pass-through ports and vertical slots to help secure cable, with support for optional Saf-T-Grip® straps on double-sided versions.
• Meets Plenum area needs by using UL 94V-0 fire-rated composite materials.

Shipping & Availability

Ship length/depth	224 (5690 mm)
Ship width	27 (69 cm)
Ship height	14 (36 cm)
Shipping weight	65 LB (29.48 kg)
