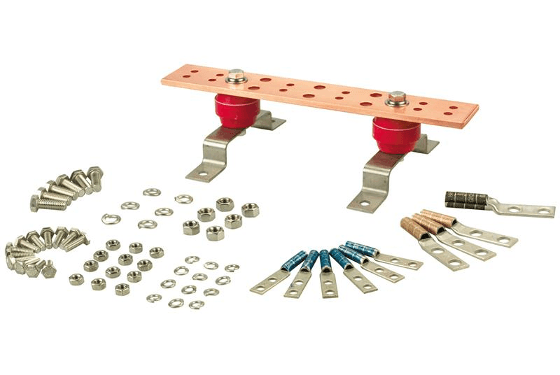

Chatsworth Products 40158-012, TMGB Pattern Busbar Lug Kit Copper

Chatsworth Products 40158-012 is a copper busbar assembly with lug kit for rack/cabinet/enclosure grounding and bonding applications. It features a PBB Pattern Telecommunications Main Grounding Busbar sized 4"H x 12"W x 1/4"D (100 mm x 300 mm x 6.4 mm). The kit includes stainless steel hardware for fastening two-hole ground lugs to the busbar and supports common lug hardware sizing for #6, #2, 2/0, and 4/0 lugs. Built in the US and BABA Compliant.

Chatsworth Products 40158-012 Technical Specs

Product Type & Construction

Assembly type	Busbar assembly with lug kit
Busbar type	PBB Pattern
Component	Busbars
Material rating	Copper
Includes	Stainless steel hardware to fasten two-hole ground lugs to the busbar

Dimensions

Height	4" (100 mm)
Width	12" (305 mm)
Depth	0.3" (6 mm)

Lug Hardware Compatibility

#6 lug hardware	2-hole lugs with 1/4" hardware
#2, 2/0, 4/0 lug hardware	2-hole lugs with 3/8" hardware

Compliance & Country of Origin

Country of origin	US
BABA Compliant	Yes

Chatsworth Products 40158-012 Applications

• Supports grounding and bonding in rack, cabinet, and enclosure installations.
• Creates a dedicated busbar point for fastening two-hole ground lugs as part of an organized grounding layout.

Shipping & Availability

Ship length/depth	33" (838 mm)
Ship width	7" (18 cm)
Ship height	3" (8 cm)
Shipping weight	8 LB (3.63 kg)
