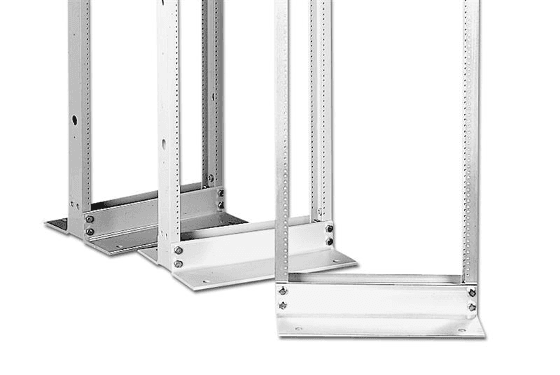

Chatsworth Products 46353-105, Universal Rack 19W x 7.5’H x 3D Gray 48 RMU

Chatsworth Products 46353-105 is a universal 19 EIA two-post rack built from 6061-T6 aluminum extrusion with heavy-duty assembly hardware. The 90 (2286 mm) frame provides 48U of marked and numbered rack-mount spaces to support 19” rack-mount equipment designed for two-post panel mounting. It includes two top angles and is rated for a weight capacity of 1500 lb (weight must be evenly distributed).

Chatsworth Products 46353-105 Key Features

• Universal rack design in a 19 EIA two-post configuration.
• Provides 48U of marked and numbered rack-mount spaces for faster, more accurate equipment placement.
• Two top angles and heavy-duty assembly hardware support a weight capacity of 1500 lb (weight must be evenly distributed).
• Threaded equipment mounting holes with included equipment-mounting screws enable quick attachment.
• Integrated grounding includes a built-in attachment point for a ground (earthing) connection.
• Pre-punched holes allow CPI vertical cable managers to attach to the side of the rack.
• Pre-punched holes in the base angle support floor mounting with a concrete, wood or raised floor installation kit.
• Ships unassembled in a single carton, and bolt-together assembly takes less than 10 minutes.

Chatsworth Products 46353-105 Technical Specs

Rack Configuration

Rack style	Universal rack
Mounting standard	19 EIA two post rack
Type	Two-post
Mounting width	19 (483 mm)

Dimensions

Height	90 (2286 mm) 48U
Depth	3 (76 mm)

Material & Finish

Color	Gray
Material	Aluminum
Construction	6061-T6 aluminum extrusion with heavy-duty assembly hardware

Environmental & Mechanical Ratings

Seismic rating	No

Compliance & Certifications

BABA compliant	Yes
Country of origin	US

Chatsworth Products 46353-105 Applications

• Supports 19” rack-mount equipment designed for two-post panel mounting, such as patch panels and network switches.
• Pairs with shelves to support computer servers when shelf mounting is required.
• Uses the marked and numbered rack-mount spaces to help installers position equipment or shelves accurately.
• Meets installations that require a ground (earthing) connection via the built-in attachment point.
• Allows CPI vertical cable managers to be mounted to the side of the rack.
• Works for floor-mounted installations using a concrete, wood or raised floor installation kit.

Shipping & Availability

• Ship length/depth: 236 (5994 mm)
• Ship width: 7 (18 cm)
• Ship height: 5 (13 cm)
• Shipping weight: 40 LB (18.14 kg)
