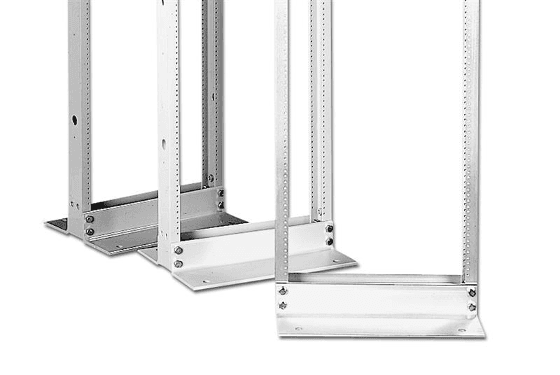

Chatsworth Products 46353-503, Universal Rack 19W x 7’H x 3D Clear 45 RMU

Chatsworth Products 46353-503 is a universal rack for 19 EIA two-post mounting, providing 45U of rack space in a clear finish. It features high-strength, lightweight 6061-T6 aluminum extrusion construction with two top angles and heavy-duty assembly hardware. Marked and numbered rack-mount spaces and threaded equipment mounting holes help speed installation. The rack ships unassembled in a single carton and bolts together in less than 10 minutes.

Chatsworth Products 46353-503 Key Features

• Universal rack designed for 19EIA two-post rack mounting.
• Provides 45U of rack space with an overall height of 84 (2134 mm) 45U; 7'H (2.1 m).
• Built from high-strength, lightweight 6061-T6 aluminum extrusion construction.
• Includes heavy-duty assembly hardware for a stronger rack to handle heavier loading.
• Supports a weight capacity of 1500 lb (weight must be evenly distributed).
• Uses two top angles and a clear finish.
• Speeds equipment placement with marked and numbered rack-mount spaces.
• Enables quick attachment with threaded equipment mounting holes and included equipment-mounting screws.
• Provides integrated grounding with a built-in attachment point for a ground (earthing) connection.
• Ships unassembled in a single carton and bolts together in less than 10 minutes.
• Offers pre-punched holes to attach CPI vertical cable managers to the side of the rack.
• Includes pre-punched holes in the base angle to secure the rack to the floor with a concrete, wood or raised floor installation kit.
• BABA compliant: Yes.
• Country of origin: US.

Chatsworth Products 46353-503 Technical Specs

Rack Configuration

Rack type	Universal Rack; 19EIA Two Post Rack
Rack units	45U
Top configuration	Two Top Angles

Dimensions

Mounting width	19 (483 mm)
Depth	3 (76 mm)

Finish

Color	Clear

Chatsworth Products 46353-503 Applications

• Supports 19” rack-mount equipment designed for two-post panel mounting, including patch panels and network switches.
• Pairs with shelves to support computer servers in a two-post rack layout.
• Streamlines installation and positioning by using marked and numbered rack-mount spaces for consistent equipment placement.
• Provides a mounting platform for CPI vertical cable managers through pre-punched side holes.
• Enables floor anchoring through pre-punched holes in the base angle when using a concrete, wood or raised floor installation kit.

Shipping & Availability

Ship length/depth	218 (5537 mm)
Ship width	7 (18 cm)
Ship height	5 (13 cm)
Shipping weight	38 LB (17.24 kg)
