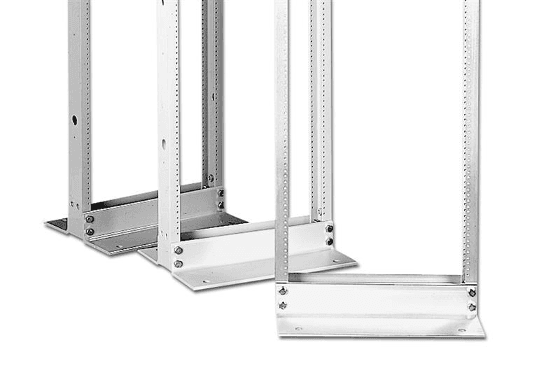

Chatsworth Products 46353-703, Universal Two Post Rack 45 RMU 19 W Black UL Listed

Chatsworth Products 46353-703 is a 19EIA two post rack designed to support 19” rack-mount equipment in network and IT spaces. It features 6061-T6 aluminum extrusion construction with a weight capacity of 1500 lb when evenly distributed. Marked and numbered rack-mount spaces and threaded equipment mounting holes with included equipment-mounting screws help streamline installation. It is delivered unassembled in a single carton and bolts together in less than 10 minutes.

Chatsworth Products 46353-703 Technical Specs

Rack Configuration & Dimensions

Rack type	19EIA Two Post Rack
Rack units	45U
Height	84 (2134 mm) 45U
Width	19 (483 mm)
Depth	3 (76 mm)
Top configuration	Two Top Angles

Materials, Finish & Load Rating

Color	Black
Material	6061-T6 aluminum extrusion
Weight capacity	1500 lb (Weight must be evenly distributed)

Grounding, Mounting & Installation Features

Grounding	Integrated grounding with a built-in attachment point for a ground (earthing) connection
Rack space markings	Marked and numbered rack-mount spaces for easier equipment and shelf positioning
Mounting holes	Threaded equipment mounting holes with included equipment-mounting screws for quick attachment
Assembly	Delivered unassembled in a single carton; bolt-together assembly takes less than 10 minutes
Side attachment holes	Pre-punched holes allow CPI vertical cable managers to attach to the side of the rack
Base mounting holes	Pre-punched holes in base angle support floor mounting with a concrete, wood or raised floor installation kit

Equipment Compatibility

Compatibility	Supports 19” rack-mount equipment designed for two-post panel mounting like patch panels and network switches, or use with shelves to support computer servers

Compliance & Certifications

Country of origin	US
BABA compliant	Yes

Chatsworth Products 46353-703 Applications

• Install patch panels and network switches designed for two-post panel mounting in network and IT spaces.
• Add shelves to support computer servers when a shelf-based mounting approach is needed.
• Position equipment and shelves more easily during installation using the marked and numbered rack-mount spaces.
• Attach CPI vertical cable managers to the side of the rack using the pre-punched holes.
• Support floor mounting using the pre-punched holes in the base angle with a concrete, wood or raised floor installation kit.

Shipping & Availability

Ship length/depth	218 (5537 mm)
Ship width	7 (18 cm)
Ship height	5 (13 cm)
Shipping weight	39 LB (17.69 kg)
