Chatsworth Products 57004-703, Global Standard Pack Std Rack 19W x 7’H Black UL Listed

Chatsworth Products 57004-703 Velocity®™ Standard Pack (VSP) combines a CPI Standard Rack, a concrete floor installation kit, and a Velocity® Vertical Cable Manager in one carton to streamline cross-connect deployments. This 19" two-post rack provides 45U of rack space and is UL® Listed. The included double-sided vertical cable manager features large, aligned cable openings for clean routing by rack-mount unit, with rounded edges to help protect cable. A snap-on cover opens to the right or left for quick access during moves, adds, and changes.

Chatsworth Products 57004-703 Technical Specs

Package Contents

Pack contents	one CPI Standard Rack, a concrete floor installation kit, and a Velocity® Vertical Cable Manager packaged in a single carton

Rack Specifications

Rack type	Two-post
Mounting width	19"
Rack units	45U
Height	Greater than 6’ to 7’
Material	Aluminum
Color	Black
Rack-mount space markings	Numbered rack-mount spaces are printed on the equipment mounting channels for easier equipment placement
Ground attachment point	Bonded assembly with a built-in attachment point for a ground (earthing) connection for connection to the Telecommunications Ground

Cable Management Specifications

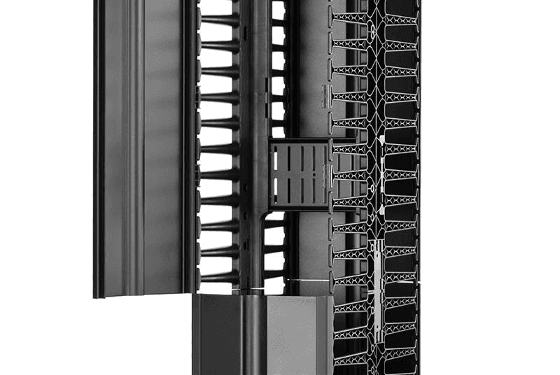

Cable manager	Double-sided Velocity® vertical cable manager, 6”W (152 mm)
Cable manager mounting	Cable managers can be mounted on either side of the Standard Rack
Cable opening alignment	Cable openings align with rack-mount units to allow cable exit by rack-mount unit
Cable opening edges	Rounded-edge cable openings help protect cable and are designed not to deform or break
Cover access	Snap-on cable manager cover opens to the right or left for quick access during moves, adds, or changes

Environmental & Mechanical Ratings

Seismic rating	No

Compliance & Certifications

Listing	UL® Listed

Chatsworth Products 57004-703 Applications

• Supports cross-connect deployments by delivering a rack, floor installation hardware, and vertical cable management together in one carton.
• Organizes patch panel, fiber enclosure, and network switch mounting in a 19" two-post rack format.
• Keeps cabling orderly by routing cables through openings aligned to rack-mount units for cleaner exits at the point of connection.
• Simplifies moves, adds, and changes with a snap-on cover that opens to the right or left for faster access.
