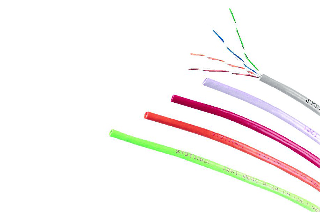

CommScope 106836950 1061C SL 4/24 W1000, Category 5e 24 AWG 4 Pair UTP PVC

SYSTIMAX® PowerSUM 1061C is a Category 5e U/UTP (Unshielded) twisted pair horizontal cable designed for network performance up to 200 MHz. It features 24 AWG solid bare copper conductors with polyolefin insulation and a PVC jacket in Slate. This non-plenum cable is CM rated and supports ANSI/TIA-568.2-D and ISO/IEC 11801 Class D. It is supplied in a 304.8 m | 1000 ft WE TOTE® box.

Key Features

• Category 5e U/UTP (Unshielded) twisted pair horizontal cable for structured cabling runs.
• 24 AWG solid bare copper conductors with polyolefin insulation and a PVC jacket.
• Supports transmission standards: ANSI/TIA-568.2-D | CENELEC EN 50288-3-1 | ISO/IEC 11801 Class D.
• Operating frequency, maximum: 200 MHz.
• Environmental space: non-plenum with CM flame test method.
• Remote powering: fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN Cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A.
• Packaged as a 304.8 m | 1000 ft WE TOTE® box.

Technical Specs

Manufacturer	SYSTIMAX®
Product brand	PowerSUM
Product type	Twisted pair cable
Cable component type	Horizontal
Product number	1061C
ANSI/TIA category	5e
Conductors, quantity	8
Pairs, quantity	4
Jacket color	Slate
Diameter over jacket, nominal	5.207 mm | 0.205 in
Jacket thickness	0.559 mm | 0.022 in
Operating voltage, maximum	80 V
Nominal velocity of propagation (NVP)	69 %
DC resistance, maximum	9.38 ohms/100 m | 2.859 ohms/100 ft
DC resistance unbalance, maximum	5 %
Mutual capacitance at frequency	5.6 nF/100 m @ 1 kHz
Dielectric strength, minimum	1500 Vac | 2500 Vdc
Pulling tension, maximum	11.34 kg | 25 lb
Installation temperature	0 °C to +60 °C (+32 °F to +140 °F)
Operating temperature	-20 °C to +60 °C (-4 °F to +140 °F)
Weight	29.168 kg/km | 19.6 lb/kft
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision
ROHS	Compliant
UK-ROHS	Compliant

Applications

• Use in horizontal structured cabling installations where Category 5e performance is required.
• Install in non-plenum environments where a CM flame test method is specified.
• Deploy for remote powering aligned with IEEE 802.3bt (Type 4) when installed according to the listed cabling standards.
