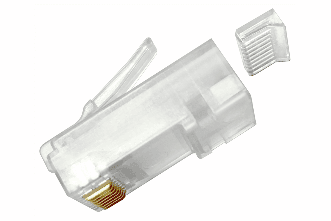

CommScope 6-2843007-1 MP-6AU-PLUG-A-1, Modular Plug Category 6A/6 Unshielded 100 Pcs

CommScope® 6-2843007-1 MP-6AU-PLUG-A-1 is an RJ45 modular plug for ANSI/TIA Category 6 | 6A and Category 6 Unshielded terminations. It is designed for round, unshielded cable with solid | stranded conductors and uses IDC termination. The plug features gold-plated phosphor bronze contacts and a glass filled polycarbonate body, with a minimum plug insertion life of 750 times.

Key Features

• Supports ANSI/TIA Category 6 | 6A and Category 6 Unshielded terminations for RJ45 connectivity.
• Designed for round, unshielded cable with solid | stranded conductors.
• Uses IDC termination for modular plug termination.
• Provides 8/8 positions/loaded contacts for RJ45 modular plug interfaces.
• Features gold contact plating over phosphor bronze contacts with a glass filled polycarbonate body.
• Offers a minimum plug insertion life of 750 times.

Technical Specs

Manufacturer	CommScope®
Product type	Modular plug
Type	Mod plug
Compatible insulated conductor diameter (min)	0.89 mm | 0.035 in
Compatible insulated conductor diameter (max)	1.09 mm | 0.043 in
Compatible conductor gauge, solid	26–23 AWG
Compatible conductor gauge, stranded	26–23 AWG
Contact plating thickness	1.27 μm
Current rating (max)	0.75 A
Safety voltage rating	150 Vac
Insulation resistance (min)	500 MOhm
Operating temperature	-10 °C to +60 °C (+14 °F to +140 °F)
Relative humidity	Up to 93%, non-condensing
Safety standard	UL 1863
Packaging quantity	100
Packaging type	Bag | Box | Carton
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision
ROHS	Compliant
UK-ROHS	Compliant

Applications

• Terminates compatible network cables into RJ45 connections in structured cabling builds.
• Ideal for patch cord production where consistent modular plug terminations are required.
• Meets network connectivity builds that call for ANSI/TIA Category 6 | 6A performance targets.
