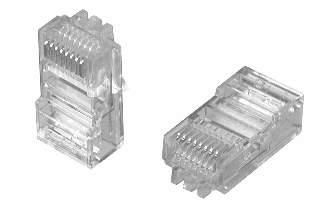

CommScope 6-554720-3 MP-88U-F-1, Modular Plug Kit Cat 5e Unshielded 8P8C 26 To 24 AWG

CommScope® 6-554720-3 MP-88U-F-1 is a modular plug kit for RJ45 terminations on flat oval, unshielded cable. It supports solid and stranded conductors in 26–24 AWG with an 8/8 (8P8C) contact configuration and IDC termination type. Gold-plated phosphor bronze contacts and a glass filled polycarbonate body support a 0.75 A maximum current rating and 150 Vac safety voltage rating. Status: Discontinued by supplier.

Key Features

• Modular plug kit with RJ45 interface for flat oval, unshielded cable terminations.
• Supports solid and stranded conductors in 26–24 AWG.
• 8/8 (8P8C) positions/loaded contacts with IDC termination type.
• Gold contact plating over phosphor bronze contact base material.
• 0.75 A maximum current rating and 150 Vac safety voltage rating.

Technical Specs

Manufacturer	CommScope®
Product type	Modular plug
Type	Mod plug
ANSI/TIA Category	5
Compatible Cable Diameter, minimum	2.54 mm | 0.1 in
Compatible Cable Diameter, maximum	8.89 mm | 0.35 in
Compatible Insulated Conductor Diameter, minimum	0.86 mm | 0.034 in
Compatible Insulated Conductor Diameter, maximum	0.99 mm | 0.039 in
Contact Plating Thickness	1.27 μm
Insulation Resistance, minimum	500 MOhm
Material Type	Glass filled polycarbonate
Plug Insertion Life, minimum	750 times
Operating Temperature	-10 °C to +60 °C (+14 °F to +140 °F)
Relative Humidity	Up to 93%, non-condensing
Flammability Rating	UL 94 V-2
Safety Standard	UL 1863
Packaging quantity	100
Packaging Type	Bag | Box | Carton
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision
ROHS	Compliant
UK-ROHS	Compliant

Applications

• Terminate flat oval, unshielded cable to an RJ45 modular plug interface.
• Use in field installs that require IDC termination.
• Support builds that require an 8/8 (8P8C) contact configuration and 26–24 AWG conductor compatibility.
