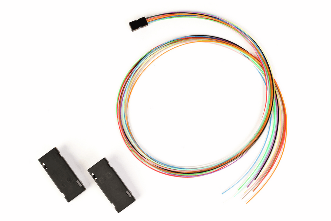

CommScope 760018838 12 FIBER BREAKOUT KIT, 12 Fiber Breakout Kit Loose Tube PE LC SC ST

CommScope 760018838 SYSTIMAX® is a rectangular fiber breakout kit designed for fiber management and termination prep. It provides a compact breakout unit with twelve buffer tubes for organized routing and consistent breakout length using 24 in x 900 μm buffer tubes. The kit supports multiple connector interface options, including LC | LC and keyed | SC | ST, and is rated for operating temperatures from -10 °C to +60 °C (+14 °F to +140 °F).

Technical Specs

Manufacturer	SYSTIMAX®
Product type	Fiber breakout kit, rectangular
Fiber type	Breakout kits
Type	Fiber
Compatible interface	LC | LC, keyed | SC | ST
Color	Black
Length	43.18 mm | 1.7 in
Width	17.78 mm | 0.7 in
Height	7.62 mm | 0.3 in
Tube length	609.6 mm | 24 in
Tube inner diameter	500 μm
Tube outer diameter	900 μm
Body material	Acrylonitrile butadiene styrene (ABS)
Tubing material	Thermoplastic elastomer (TPE)
Operating temperature	-10 °C to +60 °C (+14 °F to +140 °F)
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision
ROHS	Compliant
UK-ROHS	Compliant

Applications

• Supports fiber management and termination prep with a compact breakout unit that helps keep routing organized.
• Standardizes breakout length during fiber connectivity builds using twelve buffer tubes with a consistent 24 in length.
• Accommodates a range of fiber connectivity builds by supporting multiple connector interface options, including LC | LC and keyed | SC | ST.

Shipping & Availability

Packaging quantity	1
Included	Breakout unit | Instruction sheet | Snap together housing | Twelve Buffer tubes, 24 in x 900 μm
