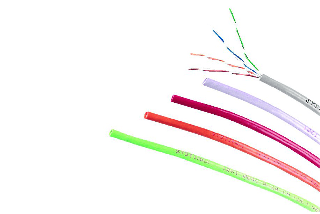

CommScope 760041939 2061F SL 4/24 W1000, Copper Cable PowerSUM Cat5E 24 AWG 4PR UTP CMP

CommScope SYSTIMAX® 2061F PowerSUM is a Category 5e U/UTP (Unshielded) horizontal twisted pair cable with 24 AWG solid bare copper conductors and a slate PVC jacket for plenum installations. This 4-pair (8-Conductor) cable is supplied in a 304.8 m | 1000 ft WE TOTE® box and supports operation up to 200 MHz. It is designed for 100 ohm performance and fully complies with IEEE 802.3bt (Type 4) remote powering recommendations when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A.

Key Features

• Category 5e U/UTP (Unshielded) horizontal twisted pair cable for structured cabling installations.
• 24 AWG solid bare copper conductors in a 4-pair (8-Conductor) construction.
• Slate PVC jacket with plenum environmental space rating and CMP/FT6 flame and smoke test methods.
• Operates up to 200 MHz and is designed for 100 ohm performance.
• Supplied in a 304.8 m | 1000 ft WE TOTE® box for convenient handling and payout.

Technical Specs

Manufacturer	SYSTIMAX®
Product brand	PowerSUM
Product type	Twisted Pair Cable
Product number	2061F
Cable component type	Horizontal
ANSI/TIA category	5e
Transmission standards	ANSI/TIA-568.2-D | CENELEC EN 50288-3-1 | ISO/IEC 11801 Class D
Insulation material	FEP | Polyolefin
Diameter over jacket, nominal	5.08 mm | 0.2 in
Jacket thickness	0.635 mm | 0.025 in
Nominal velocity of propagation (NVP)	76 %
Operating voltage, maximum	80 V
DC resistance, maximum	9.38 ohms/100 m | 2.859 ohms/100 ft
DC resistance unbalance, maximum	5 %
Mutual capacitance	5.6 nF/100 m @ 1 kHz
Dielectric strength, minimum	1500 Vac | 2500 Vdc
Remote powering	Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN Cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A
Pulling tension, maximum	11.34 kg | 25 lb
Installation temperature	0 °C to +60 °C (+32 °F to +140 °F)
Operating temperature	-20 °C to +60 °C (-4 °F to +140 °F)
Packaging type	WE TOTE® box
Weight	33.484 kg/km | 22.5 lb/kft
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision
ROHS	Compliant
UK-ROHS	Compliant

Applications

• Use in plenum network installations where CMP/FT6 flame and smoke test methods are required.
• Support modern LAN applications with operation up to 200 MHz.
• Deploy in installations that follow IEEE 802.3bt (Type 4) remote powering recommendations when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A.
