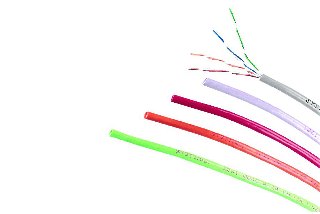

CommScope 760041947 2061F YL 4/24 W1000, Copper Cable PowerSUM Cat5E 24 AWG 4 Pair UTP

SYSTIMAX® 2061F PowerSUM is a Category 5e U/UTP (Unshielded) horizontal twisted pair cable with 24 AWG solid bare copper conductors and a yellow PVC jacket. It is rated for plenum spaces with CMP/FT6 flame and smoke test methods. This cable supports an operating frequency up to 200 MHz and is supplied in a 304.8 m | 1000 ft WE TOTE® box.

Key Features

• Category 5e U/UTP (Unshielded) twisted pair cable for horizontal installations.
• 24 AWG solid bare copper conductors in a 4-pair (8-conductor) construction.
• Yellow PVC jacket with plenum environmental space rating and CMP/FT6 flame and smoke test methods.
• Supports operating frequency up to 200 MHz.
• Packaged in a 304.8 m | 1000 ft WE TOTE® box for convenient handling.

Technical Specs

Manufacturer	SYSTIMAX®
Product brand	PowerSUM
Product type	Twisted pair cable
Product number	2061F
Cable component type	Horizontal
ANSI/TIA category	5e
Cable type	U/UTP (Unshielded)
Insulation material	FEP | Polyolefin
Jacket material	PVC
Operating voltage, maximum	80 V
DC resistance, maximum	9.38 ohms/100 m | 2.859 ohms/100 ft
DC resistance unbalance, maximum	5 %
Dielectric strength, minimum	1500 Vac | 2500 Vdc
Mutual capacitance at frequency	5.6 nF/100 m @ 1 kHz
Nominal velocity of propagation (NVP)	76 %
Diameter over jacket, nominal	5.08 mm | 0.2 in
Jacket thickness	0.635 mm | 0.025 in
Pulling tension, maximum	11.34 kg | 25 lb
Installation temperature	0 °C to +60 °C (+32 °F to +140 °F)
Operating temperature	-20 °C to +60 °C (-4 °F to +140 °F)
Weight	33.484 kg/km | 22.5 lb/kft
Transmission standards	ANSI/TIA-568.2-D | CENELEC EN 50288-3-1 | ISO/IEC 11801 Class D
Remote powering	Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN Cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision
ROHS	Compliant
UK-ROHS	Compliant

Applications

• Use for LAN transmission up to 200 MHz in horizontal cabling runs.
• Deploy in IEEE 802.3 1000BASE-T (Gigabit Ethernet) network installations.
• Support remote powering deployments that follow IEEE 802.3bt (Type 4) recommendations when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A.
