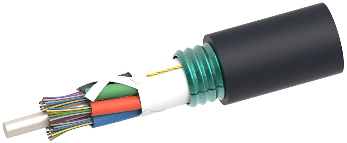

CommScope 760053298 D-024-LA-8W-F12NS, OS2 Single Mode 24 Fiber Outdoor Cable

CommScope® 760053298 D-024-LA-8W-F12NS is an armored, stranded loose tube Fiber OSP Cable in the D-LA series with OS2 single-mode fiber (G.652.D and G.657.A1, TeraSPEED®). It has a 24 fiber design built as 2 gel-free subunits with 12 fibers per subunit. The cable uses a black PE jacket that is UV stabilized and marked in feet. It is specified for aerial, lashed, and buried environmental space.

Key Features

• OS2 fiber type: G.652.D and G.657.A1, TeraSPEED®.
• 24 total fibers arranged as 2 gel-free subunits with 12 fibers per subunit.
• Armored construction with corrugated steel armor.
• Black PE jacket that is UV stabilized and marked in feet.
• Rodent protected design.

Technical Specs

Manufacturer	CommScope®
Product type	Fiber OSP Cable
Product series	D-LA
All-dielectric	No
Armored	Yes
Self-support	No
Filler quantity	3
Buffer tube/subunit diameter	2.5 mm | 0.098 in
Diameter over jacket	11.5 mm | 0.453 in
Weight	110 kg/km | 73.917 lb/kft
Minimum bend radius, unloaded	115 mm | 4.528 in
Minimum bend radius, loaded	173 mm | 6.811 in
Tensile load, long term, maximum	800 N | 179.847 lbf
Tensile load, short term, maximum	2700 N | 606.984 lbf
Compression	22 N/mm | 125.623 lbf/in
Compression test method	FOTP-41 | IEC 60794-1 E3
Flex	25 cycles
Flex test method	FOTP-104 | IEC 60794-1 E6
Impact	4.41 N-m | 39.032 in lb
Impact test method	FOTP-25 | IEC 60794-1 E4
Twist	10 cycles
Twist test method	FOTP-85 | IEC 60794-1 E7
Strain	See long and short term tensile loads
Strain test method	FOTP-33 | IEC 60794-1 E1
Vertical rise, maximum	740 m | 2427.822 ft
Installation temperature	-30 °C to +70 °C (-22 °F to +158 °F)
Operating temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Storage temperature	-40 °C to +75 °C (-40 °F to +167 °F)
Water penetration	24 h
Water penetration test method	FOTP-82 | IEC 60794-1 F5
Cable freeze	-2 °C | 28.4 °F
Cable freeze test method	FOTP-98 | IEC 60794-1 F15
Heat age	-40 °C to +85 °C (-40 °F to +185 °F)
Heat age test method	IEC 60794-1 F9
Low high bend	-30 °C to +60 °C (-22 °F to +140 °F)
Low high bend test method	FOTP-37 | IEC 60794-1 E11
Temperature cycle	-40 °C to +70 °C (-40 °F to +158 °F)
Temperature cycle test method	FOTP-3 | IEC 60794-1 F1
Cable qualification standards	ANSI/ICEA S-87-640 | EN 187105 | Telcordia GR-20
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision
ROHS	Compliant
UK-ROHS	Compliant

Applications

• Supports outside plant deployments where an armored fiber cable is specified.
• Installs in aerial, lashed environments.
• Works in buried environments.

CommScope™ and all associated trademarks are the property of their respective owners.
