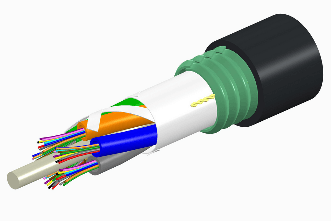

CommScope 760053355 D-144-LA-8W-F12NS, Outdoor Stranded Loose Tube Single Jacket Armor

CommScope® 760053355 D-144-LA-8W-F12NS is a fiber OSP cable in the D-LA series featuring a stranded loose tube design with corrugated steel armor. It is a 144-fiber, gel-free construction with dry water-blocking elements and TeraSPEED® | OS2 fiber (G.652.D and G.657.A1) arranged in 12 subunits with 12 fibers per subunit. The cable is finished with a black PE jacket with feet marking and a UV stabilized jacket for UV resistance. It is specified for environmental space: aerial, lashed | buried, and includes defined installation, operating, and storage temperature ranges.

Key Features

• 144 total fibers organized as 12 subunits with 12 fibers per subunit.
• Stranded loose tube design with armored construction and corrugated steel armor.
• Gel-free subunit type with dry water-blocking elements.
• TeraSPEED® | OS2 fiber type: G.652.D and G.657.A1.
• Black PE jacket with feet marking and a UV stabilized jacket for UV resistance.
• Rodent protected: Yes.

Technical Specs

Manufacturer	CommScope®
Product type	Fiber OSP Cable
Product series	D-LA
All-dielectric	No
Armored	Yes
Self-support	No
Buffer tube/subunit diameter	2.5 mm | 0.098 in
Diameter over jacket	17.3 mm | 0.681 in
Minimum bend radius, unloaded	171 mm | 6.732 in
Minimum bend radius, loaded	257 mm | 10.118 in
Tensile load, long term, maximum	800 N | 179.847 lbf
Tensile load, short term, maximum	2700 N | 606.984 lbf
Compression	44 N/mm | 251.247 lbf/in
Compression test method	FOTP-41 | IEC 60794-1 E3
Flex	25 cycles
Flex test method	FOTP-104 | IEC 60794-1 E6
Impact	5.88 N-m | 52.042 in lb
Impact test method	FOTP-25 | IEC 60794-1 E4
Strain	See long and short term tensile loads
Strain test method	FOTP-33 | IEC 60794-1 E1
Twist	10 cycles
Twist test method	FOTP-85 | IEC 60794-1 E7
Vertical rise, maximum	349 m | 1145.013 ft
Installation temperature	-30 °C to +70 °C (-22 °F to +158 °F)
Operating temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Storage temperature	-40 °C to +75 °C (-40 °F to +167 °F)
Water penetration	24 h
Water penetration qualification method	ANSI/ICEA S-87-640
Water penetration test method	FOTP-82 | IEC 60794-1 F5
Cable qualification standards	ANSI/ICEA S-87-640 | EN 187105 | Telcordia GR-20
Cable freeze	-2 °C | 28.4 °F
Cable freeze test method	FOTP-98 | IEC 60794-1 F15
Heat age	-40 °C to +85 °C (-40 °F to +185 °F)
Heat age test method	IEC 60794-1 F9
Low high bend	-30 °C to +60 °C (-22 °F to +140 °F)
Low high bend test method	FOTP-37 | IEC 60794-1 E11
Temperature cycle	-40 °C to +70 °C (-40 °F to +158 °F)
Temperature cycle test method	FOTP-3 | IEC 60794-1 F1
Weight	234 kg/km | 157.241 lb/kft
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision
ROHS	Compliant
UK-ROHS	Compliant

Applications

• Use in outside plant environments where the cable may be installed in aerial, lashed, or buried routes.
• Choose for projects requiring an armored fiber OSP cable with defined water penetration performance and qualification methods.
• Helps support installations that need specified bend radius and tensile load limits during handling and placement.
