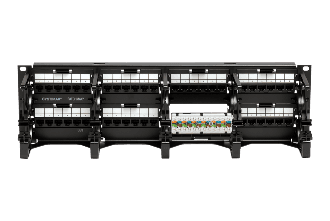

CommScope 760062364 PM-GS3-48 W/TERMINATION MGT., PATCHMAX GS3 Cat 6 U/UTP 48 Port

CommScope 760062364 PM-GS3-48 is a SYSTIMAX® GigaSPEED XL® | PATCHMAX® RJ45 patch panel for ANSI/TIA category: 6 unshielded copper networks. This 48-port, flat panel mounts in EIA 19 in racks and uses IDC termination with T568A | T568B wiring. Modular distribution modules pivot forward to provide front access to the rear 110 type IDC termination field for easier installation and changes. It supports ANSI/TIA-568-D.2 | ISO/IEC 11801 Class E transmission standards and is black for a consistent rack appearance.

Key Features

• Provides 48 total ports in a flat, 3 RU panel for EIA 19 in rack installations.
• Removable six-port distribution modules snap onto the front cord management rings and pivot forward for front access to the rear 110 type IDC termination field.
• Built-in cord and cable retainer rings support simplified administration.
• Includes front and rear labels for easier identification and documentation.
• Front ports accept GS8E GigaSPEED XL Solution patch cord or any 8-pin compliant modular cord.
• Remote powering: Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A.

Technical Specs

Manufacturer	SYSTIMAX®
Product type	RJ45 patch panel
Product brand	GigaSPEED XL® | PATCHMAX®
ANSI/TIA category	6
Cable type	Unshielded
Panel style	Flat
Rack type	EIA 19 in
Rack units	3
Modules, quantity	8
Termination type	IDC
Wiring	T568A | T568B
Conductor type	Solid | Stranded
Intelligence type	Passive
Color	Black
Transmission standards	ANSI/TIA-568-D.2 | ISO/IEC 11801 Class E
Height	132.6 mm | 5.22 in
Width	482.6 mm | 19 in
Depth, with cable management	125.7 mm | 4.949 in
Current rating at temperature	1.5 A @ 20 °C | 1.5 A @ 68 °F
Dielectric withstand voltage, RMS, contact-to-contact	1,000 Vac @ 60 Hz
Insulation resistance, minimum	500 MOhm
Material type	High-impact, flame retardant, thermoplastic
Contact plating material	Gold
Termination contact plating	Tin
Plug insertion life, test plug	IEC 60603-7 compliant plug
Plug retention force, minimum	50 N | 11.24 lbf
Operating temperature	-10 °C to +60 °C (+14 °F to +140 °F)
Storage temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Relative humidity	Up to 95%, non-condensing
Flammability rating	UL 94 V-0
Safety standard	UL | cUL
Packaging quantity	1
Packaging material	Eco-friendly, single-use plastics-free
REACH-SVHC	Compliant as per SVHC revision
ROHS	Compliant
UK-ROHS	Compliant

Applications

• Organizes and terminates copper network connections in telecom rooms and data closets.
• Enables structured cabling installations where front access to the rear termination field helps simplify moves, adds, and changes.
• Works well in rack-based network builds that benefit from integrated cord and cable retainer rings and front/rear labeling for documentation.
