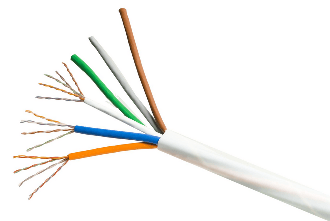

CommScope 760103044 2061B WH 25/24 R1000, Copper Cable PowerSUM Cat5E 24 AWG 4PR UTP CMP

CommScope® 2061B is a Category 5e U/UTP twisted pair backbone cable with solid 24 AWG bare copper conductors and a white PVDF jacket. Built for indoor plenum installations, it carries CMP performance and supports data transmission up to 100 MHz. This 25-pair construction (50 conductors total) is engineered to meet ANSI/TIA-568.2-D and other listed cabling standards, and it complies with IEEE 802.3bt (Type 4) recommendations for remote powering when installed per the specified installation standards.

Key Features

• Category 5e U/UTP (unshielded) twisted pair backbone cable for structured cabling builds.
• 25 pairs (50 conductors total) with solid 24 AWG bare copper conductors.
• Indoor plenum cable with CMP | FT6 fire safety listing and CMP performance.
• Supports operating frequency up to 100 MHz for data transmission.
• Remote powering: Complies with IEEE 802.3bt (Type 4) recommendations for safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A.

Technical Specs

Manufacturer	CommScope®
Product number	2061B
Product type	Twisted pair cable
Cable component type	Backbone
ANSI/TIA category	5e
Cable type	U/UTP (Unshielded)
Country specific for	United States
Insulation material	FEP
Jacket color	White
Jacket material	PVDF
Inner jacket material	PVC
Ripcord material	Nylon
Subunit quantity	6
Cable length	304.8 m | 1000 ft
Diameter over jacket, nominal	14.986 mm | 0.59 in
Jacket thickness	0.457 mm | 0.018 in
Operating voltage, maximum	80 V
Nominal velocity of propagation (NVP)	71 %
DC resistance, maximum	9.38 ohms/100 m | 2.859 ohms/100 ft
DC resistance unbalance, maximum	5 %
Mutual capacitance at frequency	5.6 nF/100 m @ 1 kHz
Dielectric strength, minimum	1500 Vac | 2500 Vdc
Transmission standards	ANSI/TIA-568.2-D | CENELEC EN 50288-3-1 | ISO/IEC 11801 Class D
Environmental space	Indoor | Plenum
Fire safety listing	CMP | FT6
Flame test method	CMP/FT6 | NFPA 262 | UL 444 | UL 910
Smoke test method	CMP/FT6 | NFPA 262
Safety standard	UL444
Pulling tension, maximum	68.039 kg | 150 lb
Installation temperature	0 °C to +60 °C (+32 °F to +140 °F)
Operating temperature	-20 °C to +60 °C (-4 °F to +140 °F)
Packaging type	Reel
Weight	259.238 kg/km | 174.2 lb/kft

Applications

• Use in indoor plenum installations where CMP performance is required.
• Support backbone cabling runs in structured cabling systems built to ANSI/TIA-568.2-D and the other listed transmission standards.
• Deploy in installations that follow ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A for IEEE 802.3bt (Type 4) remote powering.
