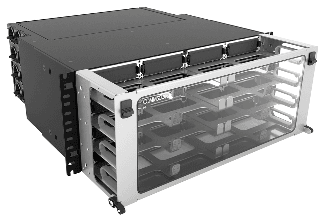

CommScope 760209965 HD-4U, Modular Cassette Sliding Shelf 4U 16 Modules

CommScope® HD-4U is an HD series fiber patch panel with a sliding, rack-mount shelf for EIA 19 in racks. This 4U shelf accepts sixteen G2 modular cassettes and features an unloaded front interface with Total ports, quantity: 0. It is iPatch® ready and supports Spliced fibers: 288. The steel construction with a Black + Silver gray (front) finish meets UL 94 V-0 and UL 1863.

Technical Specs

Manufacturer	CommScope®
Product type	Fiber patch panel
Product series	HD
Application	Accepts sixteen G2 modular cassettes
Rack type	EIA 19 in
Rack units	4
Shelf movement	Sliding
Mounting type	Rack mount
Front interface	Unloaded
Loaded	UNLOADED
Intelligence type	iPatch® ready
Total ports, quantity	0
Spliced fibers	288
Color	Black + Silver gray (front)
Height	177.8 mm | 7 in
Width	482.6 mm | 19 in
Depth	549.91 mm | 21.65 in
Material type	Steel
Flammability rating	UL 94 V-0
Safety standard	UL 1863
Packaging quantity	1
Weight	11.249 kg | 24.8 lb
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision
ROHS	Compliant
UK-ROHS	Compliant

Applications

• Provides high-density fiber management in EIA 19 in rack environments with a 4U shelf that accepts sixteen G2 modular cassettes.
• Improves access for organization and serviceability with a sliding, rack-mount shelf.
• Supports intelligent infrastructure deployments that require an iPatch® ready shelf.
