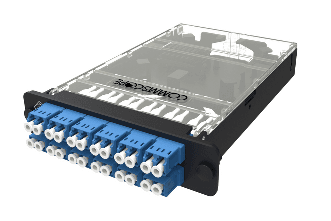

CommScope 760221705 PNL-CS-24LCW-PT, Splicing Cassette 24LC 900um

CommScope® 760221705 PNL-CS-24LCW-PT is a TeraSPEED® fiber cassette with pigtails designed for singlemode fiber management and splicing. This splice module features a blue LC/UPC front interface with 12 front ports supporting a total of 24 fibers, along with a stranded pigtail rear interface. It is built around G.652.D and G.657.A1, TeraSPEED® | OS2 fiber performance with 0.25 dB typical insertion loss and 55 dB minimum return loss.

Technical Specs

<>

Manufacturer	CommScope®
Brand	TeraSPEED®
Product Type	Fiber cassette with pigtails
Type	Splice module
Adapter Color	Blue
Front Interface	LC/UPC
Front Ports	12
Total Fibers	24
Rear Interface	Stranded pigtail
Fiber Mode	Singlemode
Fiber Type	G.652.D and G.657.A1, TeraSPEED® | OS2
Insertion Loss, typical	0.25 dB
Return Loss, minimum	55 dB
Height	28.956 mm | 1.14 in
Width	104.648 mm | 4.12 in
Depth	165.354 mm | 6.51 in
Pigtail Length	1.5 m | 4.921 ft
Safety Standard	UL
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant per SVHC revision
ROHS	Compliant
UK-ROHS	Compliant

Applications

• Enables clean, high-density singlemode fiber management and splicing in installations using a front LC/UPC interface and a rear stranded pigtail interface.
• Organizes and terminates up to 24 fibers through 12 front ports for structured fiber connectivity layouts.
• Meets deployments requiring OS2 performance using G.652.D and G.657.A1, TeraSPEED® fiber, with 0.25 dB typical insertion loss and 55 dB minimum return loss.

Shipping & Availability

Packaging quantity	1
