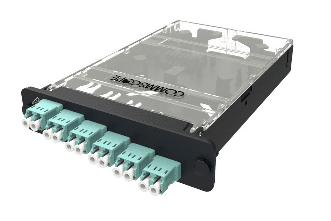

CommScope 760221739 PNL-CS-12LCX-PT, Splicing Cassette 12LC 900um

CommScope® 760221739 PNL-CS-12LCX-PT is a LazrSPEED® fiber cassette with pigtails built around OM4, LazrSPEED® 550 multimode fiber for high-density splicing and connectivity. It features an LC/UPC front interface with an aqua adapter color and a stranded pigtail rear interface to help keep terminations organized. This splice module supports 12 total fibers with 6 front ports and includes 1.5 m | 4.921 ft pigtails for routing flexibility.

Technical Specs

Manufacturer	CommScope®
Brand	LazrSPEED®
Product Type	Fiber cassette with pigtails
Type	Splice module
Front Interface	LC/UPC
Rear Interface	Stranded pigtail
Total Fibers	12
Front Ports	6
Adapter Color	Aqua
Fiber Mode	Multimode
Fiber Type	OM4, LazrSPEED® 550
Insertion Loss (typical)	0.3 dB
Return Loss (minimum)	25 dB
Height	28.956 mm | 1.14 in
Width	104.648 mm | 4.12 in
Depth	165.354 mm | 6.51 in
Pigtail Length	1.5 m | 4.921 ft
Safety Standard	UL
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision
ROHS	Compliant
UK-ROHS	Compliant
Packaging Quantity	1

Applications

• Enables efficient multimode fiber splicing and connectivity in high-density environments.
• Maintains organized terminations using an LC/UPC front interface and a stranded pigtail rear interface.
• Accommodates flexible routing needs with 1.5 m | 4.921 ft pigtails.
