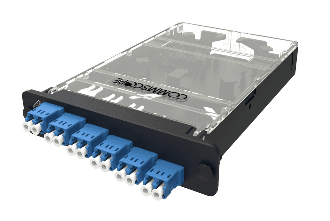

CommScope 760221747 PNL-CS-12LCW-PT, Splicing Cassette 12LC 900um

CommScope® 760221747 PNL-CS-12LCW-PT is a TeraSPEED® fiber cassette with pigtails (splice module) for singlemode networks. It features an LC/UPC front interface and a stranded pigtail rear interface, with 12 total fibers across 6 front ports and a blue adapter color. Built with G.652.D and G.657.A1, TeraSPEED® | OS2 fiber, it specifies 0.25 dB typical insertion loss and 55 dB minimum return loss.

Technical Specs

Manufacturer	CommScope®
Brand	TeraSPEED®
Product type	Fiber cassette with pigtails
Type	Splice module
Front interface	LC/UPC
Rear interface	Stranded pigtail
Adapter color	Blue
Total fibers	12
Front ports	6
Fiber mode	Singlemode
Fiber type	G.652.D and G.657.A1, TeraSPEED® | OS2
Insertion loss (typical)	0.25 dB
Return loss (minimum)	55 dB
Height	28.956 mm | 1.14 in
Width	104.648 mm | 4.12 in
Depth	165.354 mm | 6.51 in
Pigtail length	1.5 m | 4.921 ft
Safety standard	UL
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision
ROHS	Compliant
UK-ROHS	Compliant
Packaging quantity	1

Applications

• Supports splicing and termination workflows in singlemode networks using a fiber cassette with pigtails.
• Enables LC/UPC connectivity on the front while routing fibers to a stranded pigtail rear interface.
• Helps organize and manage up to 12 fibers through 6 front ports in a compact cassette format.
