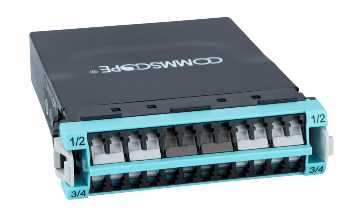

CommScope 760236108 DM08-24LC-LSULL, G2 ULL MPO-8 Module 3x8F MPO to 24F LC OM4

CommScope® 760236108 DM08-24LC-LSULL is a SYSTIMAX ULL G2 fiber module designed for breakout connectivity from an MPO rear interface to LC/UPC on the front. Built for multimode networks, it supports OM4, LazrSPEED® 550 fiber with a maximum insertion loss of 0.35 dB. The module is shuttered and uses Method B Enhanced (ULL) polarity with a key up/up | MPO Non-Pinned rear interface feature to support consistent patching and high-density connectivity.

Technical Specs

Manufacturer	CommScope®
Product type	Fiber module
Brand	SYSTIMAX ULL
Series	G2
Functionality	Breakout
Front interface	LC/UPC
Rear interface	MPO
Rear interface feature	Key up/up | MPO Non-Pinned
Polarity	Method B Enhanced (ULL)
Shuttered	Yes
Total fibers	24
Fiber mode	Multimode
Fiber type	OM4, LazrSPEED® 550
Insertion loss, maximum	0.35 dB
Color, front	Aqua
Color, rear	Gray
Height	26.42 mm | 1.04 in
Width	96.52 mm | 3.8 in
Depth	117.35 mm | 4.62 in
Qualification standards	IEC 61753-1 | TIA-568.3-D
Safety standard	CE | CSA | UL
Packaging quantity	1
Weight	0.113 kg | 0.249 lb
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision
ROHS	Compliant
UK-ROHS	Compliant

Applications

• Enables breakout connectivity by transitioning an MPO rear interface to LC/UPC connections on the front for patching and cross-connect workflows.
• Works in multimode deployments using OM4, LazrSPEED® 550 fiber where a maximum insertion loss of 0.35 dB is required.
• Supports consistent polarity management in structured fiber environments using Method B Enhanced (ULL) polarity.
• Offers a shuttered front interface to support routine patching in high-density connectivity areas.
