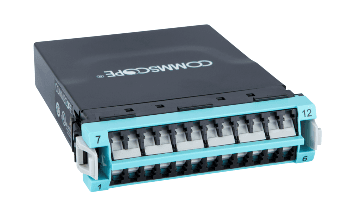

CommScope 760236110 DM12-24LC-LSULL, G2 ULL MPO-12 Module 2x12F to 24F LC Aqua OM4

CommScope® 760236110 DM12-24LC-LSULL is a SYSTIMAX ULL G2 fiber module designed for breakout connectivity from an MPO rear interface to an LC/UPC front interface. It supports 24 total fibers using multimode OM4, LazrSPEED® 550 fiber and specifies an insertion loss maximum of 0.35 dB. The module uses Method B Enhanced (ULL) polarity and includes a shuttered LC front. It features an aqua front and gray rear and is qualified to IEC 61753-1 and TIA-568.3-D, with CE, CSA, and UL safety standard listings.

Technical Specs

Manufacturer	CommScope®
Product type	Fiber module
Brand	SYSTIMAX ULL
Series	G2
Functionality	Breakout
Front interface	LC/UPC
Rear interface	MPO
Rear interface feature	Key up/up | MPO Non-Pinned
Polarity	Method B Enhanced (ULL)
Shuttered	Yes
Total fibers	24
Fiber mode	Multimode
Fiber type	OM4, LazrSPEED® 550
Insertion loss, maximum	0.35 dB
Color, front	Aqua
Color, rear	Gray
Height	26.42 mm | 1.04 in
Width	96.52 mm | 3.8 in
Depth	117.35 mm | 4.62 in
Qualification standards	IEC 61753-1 | TIA-568.3-D
Safety standard	CE | CSA | UL
Packaging quantity	1
Weight	0.113 kg | 0.249 lb
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision
ROHS	Compliant
UK-ROHS	Compliant

Applications

• Enables breakout connectivity by presenting an MPO rear interface as an LC/UPC front interface in a fiber module layout.
• Supports multimode OM4, LazrSPEED® 550 fiber links that require an insertion loss maximum of 0.35 dB.
• Maintains consistent connectivity orientation in installations using Method B Enhanced (ULL) polarity.
• Provides front-interface protection in environments where a shuttered LC front is preferred.
