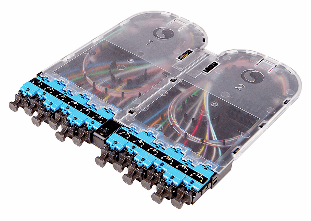

CommScope 760237944 EHD-SP-24LC-SM-AS-ULL, 24F LC UPC SM Stranded Pigtail Cassette

CommScope® 760237944 EHD-SP-24LC-SM-AS-ULL is a SYSTIMAX ULL EHD fiber cassette with pigtails for high-density singlemode terminations. It features an LC/UPC front interface and a stranded pigtail rear interface, and it supports Method A polarity with straight pairs. This 24-fiber module is built with G.657.A2 singlemode fiber (OS2) and specifies an insertion loss maximum of 0.25 dB. The front is blue, and the cassette measures 11.43 mm | 0.45 in (H) x 169.672 mm | 6.68 in (W) x 163.83 mm | 6.45 in (D).

Technical Specs

Manufacturer	CommScope®
Part number	760237944
Product brand	SYSTIMAX ULL
Product series	EHD
Product type	Fiber cassette with pigtails
Type	Modules
Front interface	LC/UPC
Rear interface	Stranded pigtail
Connector type	LC - OTHER
Polarity	Method A | Pairs, straight
Shuttered	No
Total fibers, quantity	24
Number of fibers	24 FIBER
Fiber mode	Singlemode
Fiber type	G.657.A2
Fiber type	OS2
Insertion loss, maximum	0.25 dB
Color, front	Blue
Height	11.43 mm | 0.45 in
Width	169.672 mm | 6.68 in
Depth	163.83 mm | 6.45 in
Qualification standards	IEC 61753-1 | TIA-568.3-D
Safety standard	CE | CSA | UL
CHINA-ROHS	Above maximum concentration value
ROHS	Compliant/Exempted
UK-ROHS	Compliant/Exempted
Packaging quantity	1
Included	Single Fusion Splice Protection Sleeves
Weight	0.181 kg | 0.4 lb

Applications

• Enables clean, high-density singlemode terminations in structured cabling environments.
• Meets Method A polarity requirements with straight pairs for consistent connectivity.
