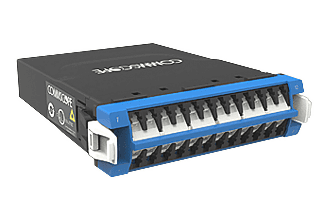

CommScope 760238083 DM12-24LC-SM-ULL, G2 MPO-12 OS2 Fiber Module 2X12F

CommScope® 760238083 DM12-24LC-SM-ULL is a SYSTIMAX ULL G2 fiber module designed for breakout connectivity in high-density fiber deployments. It supports 24 fibers with singlemode OS2 performance, using LC/UPC on the front and MPO on the rear for trunk-to-LC distribution. Method B Enhanced (ULL) polarity and a shuttered front interface help support reliable patching and front-port protection. Insertion loss is rated at a maximum of 0.6 dB.

Technical Specs

Manufacturer	CommScope®
Product type	Fiber module
Brand	SYSTIMAX ULL
Series	G2
Functionality	Breakout
Total fibers	24
Number of fibers	24 FIBER
Front interface	LC/UPC
Rear interface	MPO
Rear interface feature	Key up/up | MPO Non-Pinned
Polarity	Method B Enhanced (ULL)
Shuttered	Yes
Connector type	MPO - OTHER
Type	Trunk cables
Fiber mode	Singlemode
Fiber type	OS2
Insertion loss (max)	0.6 dB
Front color	Blue
Rear color	Gray
Height	26.42 mm | 1.04 in
Width	96.52 mm | 3.8 in
Depth	117.35 mm | 4.62 in
Qualification standards	IEC 61753-1 | TIA-568.3-D
Safety standard	CE | CSA | UL
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision
ROHS	Compliant
UK-ROHS	Compliant
Packaging quantity	1
Weight	0.113 kg | 0.249 lb

Applications

• Supports breakout connectivity in high-density fiber deployments requiring trunk-to-LC distribution.
• Streamlines patching in data center and enterprise networks by presenting LC/UPC on the front with MPO on the rear.
• Uses a shuttered front interface to support front-port protection during patching and routine changes.
