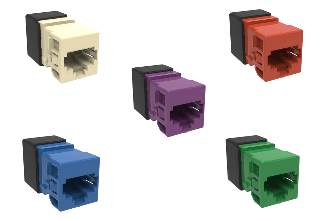

CommScope 760241179 UNJ10G-GR, Copper Jack Cat 6A 1 PORT MOD JACK GREEN

Uniprise® UNJ Series modular jack is a Category 6A, unshielded modular jack for copper network terminations. This 1-port jack mounts into M Series faceplates and panels and supports both T568A and T568B wiring. It uses IDC termination with 110 Punchdown tool or JTT Termination tool support and is compatible with solid and stranded conductors. It fully supports IEEE 802.3bt (Type 4) remote powering and PoE durability for demanding LAN environments.

Key Features

• Category 6A performance supports ANSI/TIA-568.2-D and ISO/IEC 11801 Class EA transmission standards.
• Unshielded, 1-port modular jack design in green.
• Mounts into M Series faceplates and panels for structured cabling installations.
• Supports T568A and T568B wiring schemes for flexible termination.
• IDC termination supports a 110 Punchdown tool or JTT Termination tool; termination punchdowns, minimum: 20 times.
• Remote powering fully supports the safe delivery of power over LAN cabling described by IEEE 802.3bt (Type 4) and complies with the unmating under electrical load requirements prescribed by IEC 60512-99-002.
• PoE durability supports IEEE 802.3bt Type 4 (90 W) applications greater than 3000 plug to jack mating cycles.

Technical Specs

Product type	Modular jack
Product series	UNJ Series
ANSI/TIA category	6A
Category	Category 6A
Cable type	Unshielded
Number of ports	1
Color	Green
Integrated dust cover type	None
Conductor type	Solid | Stranded
Compatible conductor gauge, solid	22–24 AWG
Compatible conductor gauge, stranded	24–26 AWG
Compatible cable diameter, maximum	7.24 mm | 0.285 in
Compatible insulated conductor diameter, maximum	1.45 mm | 0.057 in
Height	18.8 mm | 0.74 in
Width	18.5 mm | 0.728 in
Depth	30.5 mm | 1.201 in
Contact resistance, maximum	20 mOhm
Insulation resistance, minimum	500 MOhm
Safety voltage rating	150 Vac
Dielectric withstand voltage, RMS, contact-to-contact	1,000 Vac @ 60 Hz
Current rating at temperature	1.5 A @ 20 °C | 1.5 A @ 68 °F
Material type	PC+ABS
Contact base material	Beryllium copper
Contact plating material	Gold
Contact plating thickness	1.27 μm
IDC termination material	Phosphor Bronze
Termination contact plating	Tin
Plug retention force, minimum	50 N | 11.24 lbf
Plug to jack mating cycles	Complies to IEC 60603-7 series
Operating temperature	-10 °C to +60 °C (+14 °F to +140 °F)
Storage temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Relative humidity	Up to 95%, non-condensing
Flammability rating	UL 94 V-0
Safety standard	UL

Applications

• Terminate copper network cabling in structured cabling systems using M Series faceplates and panels.
• Use in installations that require either T568A or T568B wiring schemes.
• Deploy in LAN environments that use IEEE 802.3bt (Type 4) remote powering and require compliance with IEC 60512-99-002 unmating under electrical load requirements.
• Choose for deployments where PoE durability and high plug-to-jack mating cycle performance are needed.
