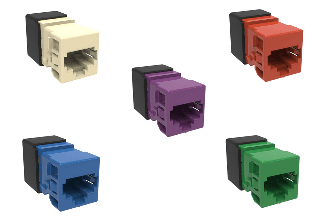

CommScope 760241180 UNJ10G-VL, Cat 6A Outlet Violet

CommScope Uniprise® 760241180 UNJ10G-VL is a Category 6A unshielded modular jack for Ethernet terminations in M Series faceplates and panels. This 1-port jack supports solid and stranded conductors with A/B universal wiring for T568A and T568B schemes. It meets ANSI/TIA-568.2-D and ISO/IEC 11801 Class EA transmission standards and uses IDC terminations. It fully supports IEEE 802.3bt (Type 4) remote powering, including durability for 90 W applications beyond 3000 plug-to-jack mating cycles.

Key Features

• Category 6A modular jack designed for high-performance Ethernet terminations.
• Unshielded 1-port outlet.
• Violet color.
• Mounts in M Series faceplates and panels.
• Integrated dust cover type: none.
• Universal wiring support for T568A and T568B schemes.
• IDC termination style for punchdown terminations.
• Fully supports IEEE 802.3bt (Type 4) remote powering, including unmating under electrical load requirements prescribed by IEC 60512-99-002.
• PoE durability supports IEEE 802.3bt Type 4 (90 W) applications greater than 3000 plug-to-jack mating cycles.

Technical Specs

Manufacturer	Uniprise®
Product type	Modular jack
Product series	UNJ Series
ANSI/TIA Category	6A
Transmission standards	ANSI/TIA-568.2-D | ISO/IEC 11801 Class EA
Plug-to-jack mating cycles	Complies to IEC 60603-7 series
Conductor type	Solid | Stranded
Compatible conductor gauge, solid	22–24 AWG
Compatible conductor gauge, stranded	24–26 AWG
Compatible cable diameter, maximum	7.24 mm | 0.285 in
Compatible insulated conductor diameter, maximum	1.45 mm | 0.057 in
Termination tool	110 Punchdown tool | JTT Termination tool
Termination punchdowns, minimum	20 times
Height	18.8 mm | 0.74 in
Width	18.5 mm | 0.728 in
Depth	30.5 mm | 1.201 in
Contact plating thickness	1.27 μm
Current rating at temperature	1.5 A @ 20 °C | 1.5 A @ 68 °F
Safety voltage rating	150 Vac
Contact resistance, maximum	20 mOhm
Insulation resistance, minimum	500 MOhm
Dielectric withstand voltage, RMS, contact-to-contact	1,000 Vac @ 60 Hz
Material type	PC+ABS
Contact base material	Beryllium copper
Contact plating material	Gold
IDC termination material	Phosphor Bronze
Termination contact plating	Tin
Plug retention force, minimum	50 N | 11.24 lbf
Operating temperature	-10 °C to +60 °C (+14 °F to +140 °F)
Storage temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Relative humidity	Up to 95%, non-condensing
Flammability rating	UL 94 V-0
Safety standard	UL

Applications

• Terminates Ethernet cabling in M Series faceplates and panels where a Category 6A modular jack is required.
• Enables A/B universal wiring for T568A and T568B schemes.
• Accommodates solid or stranded conductors within the listed compatible conductor gauges and maximum cable/insulated conductor diameters.
• Supports IEEE 802.3bt (Type 4) remote powering, including 90 W applications and unmating under electrical load requirements prescribed by IEC 60512-99-002.

CommScope™ and all associated trademarks are the property of their respective owners.
