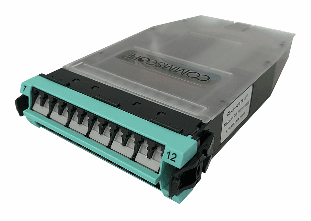

CommScope 760244927 G2-SP-24LCX-PT, Splice Cassette 24LC OM4 with Pigtails

CommScope® G2-SP-24LCX-PT is a G2 fiber cassette with pigtails designed for efficient splicing and high-density fiber management. It provides 24 fibers with an LC/UPC front interface and a stranded pigtail rear interface, using pairs, straight polarity and shuttered ports for added protection. Built for multimode performance, it supports OM4 fiber with a maximum insertion loss of 0.15 dB and a minimum return loss of 35 dB.

Technical Specs

Manufacturer	CommScope®
Product type	Fiber cassette with pigtails
Product series	G2
Type	Splice module
Front interface	LC/UPC
Rear interface	Stranded pigtail
Total fibers	24
Polarity	Pairs, straight
Shuttered	Yes
Fiber mode	Multimode
Fiber type	OM4
Insertion loss, maximum	0.15 dB
Return loss, minimum	35 dB
Alignment sleeve material	Zirconia
Height	26.416 mm | 1.04 in
Width	96.52 mm | 3.8 in
Depth	165.354 mm | 6.51 in
Qualification standards	IEC 61753-1 | TIA-568.3-D
Safety standard	UL
Included	SMOUV holder | SMOUV splice protection
Packaging quantity	1
Weight	0.147 kg | 0.3241 lb
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision
ROHS	Compliant
UK-ROHS	Compliant

Applications

• Supports efficient splicing workflows and organized fiber routing in high-density fiber management builds.
• Enables patching through the LC/UPC front interface and splicing into the fiber plant via the stranded pigtail rear interface.
• Helps protect the front interface during handling and routine changes with shuttered ports.
