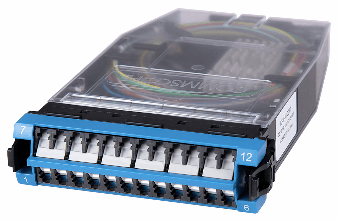

CommScope 760244929 G2-SP-24LCG-PT, 24LC OS2 Splice Cassette with Pigtails

CommScope® 760244929 G2-SP-24LCG-PT is a G2 series fiber cassette with pigtails designed for high-density singlemode terminations. It provides 24 fibers with an LC/UPC front interface and a stranded pigtail rear interface, using pairs, straight polarity and shuttered ports. Built around G.657.A2 fiber, it specifies 0.25 dB maximum insertion loss and 50 dB minimum return loss. The cassette includes an SMOUV holder and SMOUV splice protection to support organized splicing in OS2 deployments.

Technical Specs

Manufacturer	CommScope®
Product series	G2
Product type	Fiber cassette with pigtails
Type	Splice module
Total fibers	24
Front interface	LC/UPC
Rear interface	Stranded pigtail
Polarity	Pairs, straight
Shuttered	Yes
Front color	Blue
Fiber mode	Singlemode
Fiber type	G.657.A2
Insertion loss (maximum)	0.25 dB
Return loss (minimum)	50 dB
Alignment sleeve material	Zirconia
Height	26.416 mm | 1.04 in
Width	96.52 mm | 3.8 in
Depth	165.354 mm | 6.51 in
Qualification standards	IEC 61753-1 | TIA-568.3-D
Safety standard	UL
Included	SMOUV holder | SMOUV splice protection
Packaging quantity	1
Weight	0.147 kg | 0.3241 lb
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision
ROHS	Compliant
UK-ROHS	Compliant

Applications

• Use it for clean, high-density singlemode terminations requiring an LC/UPC front interface.
• Shuttered ports help protect connectors in patching environments.
• Included SMOUV holder and SMOUV splice protection help streamline splicing and fiber organization.
• Choose it for OS2 deployments that require a fiber cassette with pigtails and pairs, straight polarity.
