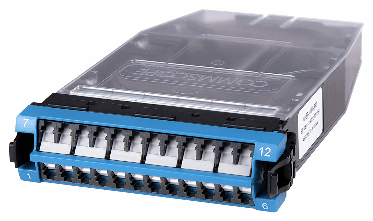

CommScope 760244930 G2-SP-24LCG-RPT, OS2 24 LC/UPC Splice Cassette

CommScope® 760244930 G2-SP-24LCG-RPT is a G2 fiber cassette with ribbon pigtail for high-density singlemode fiber management. It features an LC/UPC front interface in a shuttered design and supports 24 total fibers with pairs, straight polarity. Optical performance is specified up to 0.25 dB maximum insertion loss and 50 dB minimum return loss, with zirconia alignment sleeves.

Technical Specs

Manufacturer	CommScope®
Product series	G2
Product type	Fiber cassette with ribbon pigtail
Type	Splice module
Front interface	LC/UPC
Rear interface	Ribbon pigtail
Total fibers	24
Polarity	Pairs, straight
Shuttered	Yes
Fiber mode	Singlemode
Fiber type	G.657.A2
Insertion loss (maximum)	0.25 dB
Return loss (minimum)	50 dB
Alignment sleeve material	Zirconia
Height	26.416 mm | 1.04 in
Width	96.52 mm | 3.8 in
Depth	165.354 mm | 6.51 in
Qualification standards	IEC 61753-1 | TIA-568.3-D
Safety standard	UL
Packaging quantity	1
Included	SMOUV holder | SMOUV splice protection
Weight	0.123 kg | 0.2712 lb
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant per SVHC revision
ROHS	Compliant
UK-ROHS	Compliant

Applications

• Use it for high-density singlemode fiber management requiring an LC/UPC front interface and ribbon pigtail rear interface.
• Streamline splicing workflows with the included SMOUV holder and SMOUV splice protection.
• Choose it for installations that require a shuttered front interface design.
