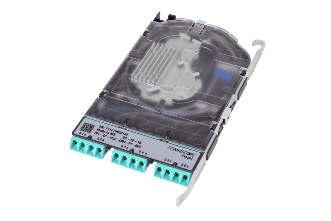

CommScope 760255044, PPL-SP-12LC-OM4-PT-BEU OM4 Pigtail Cassette 12LC

CommScope® 760255044 is a Propel PPL fiber cassette with pigtails designed for high-density multimode fiber deployments. This OM4 cassette provides 12 fibers with an LC/UPC front interface and a stranded pigtail rear interface to support splicing and connectivity. It features Method B Enhanced (ULL) polarity, a shuttered front, and a maximum insertion loss of 0.15 dB for structured cabling environments.

Technical Specs

Manufacturer	CommScope®
Brand	Propel
Series	PPL
Product type	Fiber cassette with pigtails
Type	Splice module
Total fibers	12
Front interface	LC/UPC
Rear interface	Stranded pigtail
Polarity	Method B Enhanced (ULL)
Shuttered	Yes
Front color	Aqua
Fiber mode	Multimode
Fiber type	OM4
Insertion loss, maximum	0.15 dB
Height	11.6 mm | 0.457 in
Width	97.8 mm | 3.85 in
Depth	187 mm | 7.362 in
Qualification standards	IEC 61753-1 | TIA-568.3-D
Safety standard	UL
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision
ROHS	Compliant
UK-ROHS	Compliant
Packaging quantity	1
Included	Single Fusion Splice Protection Sleeves

Applications

• Organizes and manages fiber connections in high-density multimode fiber deployments using a compact cassette format.
• Streamlines splicing and connectivity workflows with an LC/UPC front interface and a stranded pigtail rear interface.
• Supports structured cabling environments that require polarity management using Method B Enhanced (ULL).
• Protects front connections in patching areas with a shuttered front design.
