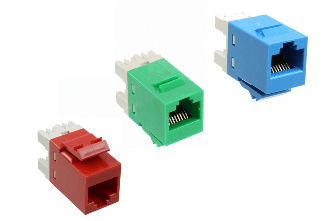

CommScope 760257199 USL10G-YEL, Cat 6A UTP RJ45 Jack Yellow

CommScope Uniprise® USL10G-YEL is a Category 6A modular jack for unshielded (UTP) network terminations in SL Series faceplates and panels. This 1-port jack supports T568A and T568B wiring with IDC termination using a 110 Punchdown tool or JTT Termination tool. It meets ANSI/TIA-568.2-D and ISO/IEC 11801 Class EA transmission standards and is rated for -10 °C to +60 °C operation. USL10G-YEL fully supports IEEE 802.3bt (Type 4) remote powering, complies with IEC 60512-99-002 unmating under electrical load requirements, and exceeds 3000 plug to jack mating cycles for 90 W applications.

Key Features

• Category 6A modular jack for unshielded (UTP) terminations.
• Designed for SL Series faceplates and panels.
• Supports T568A and T568B wiring with IDC termination.
• Works with a 110 Punchdown tool or JTT Termination tool.
• Fully supports IEEE 802.3bt (Type 4) remote powering and complies with IEC 60512-99-002 unmating under electrical load requirements.
• Exceeds 3000 plug to jack mating cycles for 90 W applications.
• Meets ANSI/TIA-568.2-D and ISO/IEC 11801 Class EA transmission standards.
• Rated for -10 °C to +60 °C (+14 °F to +140 °F) operation.

Technical Specs

Manufacturer	Uniprise®
Product type	Modular jack
Product series	USL Series
Color	Yellow
Number of ports	1
Termination punchdowns, minimum	20 times
Conductor type	Solid | Stranded
Compatible conductor gauge, solid	22–24 AWG
Compatible conductor gauge, stranded	24–26 AWG
Compatible cable diameter, maximum	7.24 mm | 0.285 in
Compatible insulated conductor diameter, maximum	1.45 mm | 0.057 in
Integrated dust cover type	None
Plug to jack mating cycles	Complies to IEC 60603-7 series
Contact resistance, maximum	20 mOhm
Current rating at temperature	1.5 A @ 20 °C | 1.5 A @ 68 °F
Dielectric withstand voltage, RMS, contact-to-contact	1,000 Vac @ 60 Hz
Insulation resistance, minimum	500 MOhm
Safety voltage rating	150 Vac
Material type	PC+ABS
Contact base material	Beryllium copper
Contact plating material	Gold
Contact plating thickness	1.27 μm
IDC termination material	Phosphor Bronze
Termination contact plating	Tin
Height	16.13 mm | 0.635 in
Width	14.48 mm | 0.57 in
Depth	30.48 mm | 1.2 in
Plug retention force, minimum	50 N | 11.24 lbf
Storage temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Relative humidity	Up to 95%, non-condensing
Flammability rating	UL 94 V-0
Safety standard	UL

Applications

• Terminate network cabling in SL Series faceplates and panels where a Category 6A modular jack is required.
• Use in installations that follow T568A or T568B wiring schemes with IDC punchdown termination.
• Fit projects that require compatibility with solid or stranded conductors within the specified gauge ranges and maximum cable and insulated conductor diameters.
• Support environments that need IEEE 802.3bt (Type 4) remote powering and compliance with IEC 60512-99-002 unmating under electrical load requirements.
