CommScope 8107972/DB R-024-LN-8W-F12BK/25D, Fiber Cable 24 Fiber OS2 Single mode Indoor Outdoor

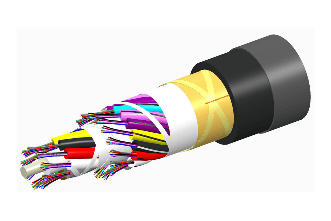

CommScope® 8107972/DB R-024-LN-8W-F12BK/25D is a 24-fiber OS2 single-mode indoor/outdoor fiber cable with a stranded loose tube design and a UV stabilized black jacket. It features a non-armored, all-dielectric construction with gel-free subunits, built with 2 subunits of 12 fibers each. The fiber types are G.652.D and G.657.A1, and the cable is listed for NEC OFNR (ETL) and c(ETL) per UL 1666. It is qualified to ANSI/ICEA S-104-696 | EN 187105 | Telcordia GR-409.

Key Features

• 24-fiber OS2 single-mode indoor/outdoor fiber cable for single-mode deployments.
• Stranded loose tube design with 2 gel-free subunits (12 fibers per subunit).
• Non-armored, all-dielectric construction (Armored: No).
• UV stabilized black jacket with Jacket Marking: Feet.
• Riser rated with Flame test listing: NEC OFNR (ETL) and c(ETL) per UL 1666.
• Cable qualification standards: ANSI/ICEA S-104-696 | EN 187105 | Telcordia GR-409.

Technical Specs

Manufacturer	CommScope®
Product type	Fiber indoor/outdoor cable
Product series	R-LN
Fiber type	G.652.D and G.657.A1
Filler, quantity	3
Rodent protected	No
Buffer tube/subunit diameter	2.5 mm | 0.098 in
Diameter over jacket	11.5 mm | 0.453 in
Weight	121 kg/km | 81.308 lb/kft
Minimum bend radius, unloaded	115 mm | 4.528 in
Minimum bend radius, loaded	173 mm | 6.811 in
Tensile load, long term, maximum	800 N | 179.847 lbf
Tensile load, short term, maximum	2700 N | 606.984 lbf
Compression	22 N/mm | 125.623 lbf/in
Compression test method	FOTP-41 | IEC 60794-1 E3
Flex	25 cycles
Flex test method	FOTP-104 | IEC 60794-1 E6
Impact	2.94 N-m | 26.021 in lb
Impact test method	FOTP-25 | IEC 60794-1 E4
Strain	See long and short term tensile loads
Strain test method	FOTP-33 | IEC 60794-1 E1
Twist	10 cycles
Twist test method	FOTP-85 | IEC 60794-1 E7
Vertical rise, maximum	678 m | 2224.409 ft
Environmental space	Riser
Fire rating	Riser
Installation temperature	-10 °C to +60 °C (+14 °F to +140 °F)
Operating temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Storage temperature	-40 °C to +75 °C (-40 °F to +167 °F)
Water penetration	24 h
Water penetration test method	FOTP-82 | IEC 60794-1 F5
Cable freeze	-2 °C | 28.4 °F
Cable freeze test method	FOTP-98 | IEC 60794-1 F15
Heat age	-40 °C to +85 °C (-40 °F to +185 °F)
Heat age test method	IEC 60794-1 F9
Low high bend	-30 °C to +60 °C (-22 °F to +140 °F)
Low high bend test method	FOTP-37 | IEC 60794-1 E11
Temperature cycle	-40 °C to +70 °C (-40 °F to +158 °F)
Temperature cycle test method	FOTP-3 | IEC 60794-1 F1
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision
ROHS	Compliant
UK-ROHS	Compliant

Applications

• Supports backbone and riser pathways where a riser-listed fiber cable is required.
• Enables routing in mixed indoor/outdoor environments where a UV stabilized jacket is needed.
• Works well in installations that benefit from all-dielectric, non-armored construction.

CommScope™ and all associated trademarks are the property of their respective owners.
