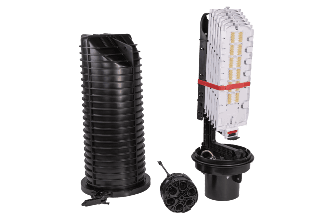

CommScope 931866-000 FOSC450-D6-6-NT-0-D6V, Fiber Optic Splice Closure 6 Round Port Black

CommScope 931866-000 FOSC450-D6-6-NT-0-D6V is a single-ended, round FOSC® fiber optic splice closure in the FOSC 450 series for feeder network applications. It uses compressed gel cable sealing and a dome-to-base clamp with O-ring closure seal to support cable add/drop and closure sealing. This black, impact-resistant polymer closure provides 6 round ports and supports mass fusion and single fusion splicing up to 3456. It includes a pre-installed flash test valve, ground feed-through, and cable termination attachments (6).

Key Features

• Single-ended, round fiber closure in the FOSC® product brand and FOSC 450 series.
• Compressed gel cable sealing with a dome-to-base clamp and O-ring closure seal.
• 6 round ports with round main and drop port styles.
• Supports mass fusion and single fusion splicing with splicing capacity, maximum: 3456.
• Includes a pre-installed flash test valve, ground feed-through, and cable termination attachments (6).

Technical Specs

Product type	Single-ended, round fiber closure
Product series	FOSC 450
Network area type	Feeder
Main cable diameter, maximum	25 mm | 0.984 in
Splicing capacity, mass fusion, maximum	3456
Splicing capacity, single fusion, maximum	768
Splicing capacity, single splice, 12 fibers, maximum	576
Splicing capacity, single splice, 6 fibers, maximum	288
Splice tray included, quantity	0
Splice tray type included	No trays
Fiber storage basket type	D6 standard size
Mounting	Pole | Strand | Wall
Length	753 mm | 29.646 in
Diameter	254 mm | 10 in
Diameter, with clamp	292 mm | 11.496 in
Environmental space	Below ground | Buried
Qualification standards	IEC 61300, 5 m waterhead
Water resistance	Flash test valve at 5 psi (40 kPa)
Packaging quantity	1
Packaging type	Box | Carton
Weight	9.07 kg | 19.996 lb
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision
ROHS	Compliant
UK-ROHS	Compliant

Applications

• Designed for feeder network applications in below ground and buried environments.
• Enables simplified cable add/drop where compressed gel cable sealing is used for cable additions or removals across a wide range of cable sizes.
• Works with pole, strand, or wall mounting installations.
• Supports aerial, pedestal, and underground environments up to 5 meters.
