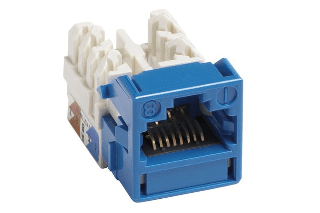

CommScope CC0020917/1 UNJ600T- BL, Cat 6 U UTP Information Outlet Blue

Uniprise® CC0020917/1 UNJ600T- BL is a UNJ Series Category 6 unshielded modular jack for LAN connectivity in M Series faceplates and panels. It supports T568A and T568B wiring and uses IDC termination with a 110 Punchdown tool for consistent field installs. This jack fully supports IEEE 802.3bt (Type 4) remote powering and complies with the unmating under electrical load requirements prescribed by IEC 60512-99-002. It also supports IEEE 802.3bt Type 4 (90 W) applications greater than 3000 plug to jack mating cycles.

Key Features

• This Category 6 unshielded modular jack is designed for LAN connectivity.
• It supports T568A and T568B wiring for flexible termination schemes.
• It uses IDC termination with a 110 Punchdown tool for installation.
• It fully supports IEEE 802.3bt (Type 4) remote powering and complies with the unmating under electrical load requirements prescribed by IEC 60512-99-002.
• It supports IEEE 802.3bt Type 4 (90 W) applications greater than 3000 plug to jack mating cycles.

Technical Specs

Manufacturer	Uniprise®
Product type	Modular jack
Series	UNJ Series
Ports	1
Transmission standards	ANSI/TIA-568.2-D | ISO/IEC 11801 Class E
Conductor type	Solid | Stranded
Termination punchdowns, minimum	20 times
Mounting	M Series faceplates and panels
Integrated dust cover	None
Height	19.2 mm | 0.756 in
Width	21.1 mm | 0.831 in
Depth	30.2 mm | 1.189 in
Compatible cable diameter, maximum	5.8 mm | 0.228 in
Compatible insulated conductor diameter, maximum	1.45 mm | 0.057 in
Compatible conductor gauge, solid	22–24 AWG | 21 AWG (for CommScope GigaREACH Cable only)
Compatible conductor gauge, stranded	22–24 AWG
Contact plating thickness	1.27 μm
Contact resistance, maximum	20 mOhm
Current rating	1.5 A @ 20 °C | 1.5 A @ 68 °F
Dielectric withstand voltage, RMS (contact-to-contact)	1,000 Vac @ 60 Hz
Insulation resistance, minimum	500 MOhm
Safety voltage rating	150 Vac
Material type	PC+ABS
Contact base material	Copper-Nickel alloy
Contact plating material	Gold
IDC termination material	Copper-Aluminum alloy
Termination contact plating	Tin
Plug retention force, minimum	50 N | 11.24 lbf
Plug to jack mating cycles	Complies to IEC 60603-7 series
Operating temperature	-10 °C to +60 °C (+14 °F to +140 °F)
Storage temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Relative humidity	Up to 95%, non-condensing
Flammability rating	UL 94 V-0
Safety standard	UL
Packaging quantity	1
Packaging type	Bag

Applications

• Use it for LAN connectivity when installed in M Series faceplates and panels.
• Choose it for network terminations that require T568A or T568B wiring schemes.
• Deploy it for remote powering over LAN cabling described by IEEE 802.3bt (Type 4) where unmating under electrical load requirements prescribed by IEC 60512-99-002 apply.

Shipping & Availability

• This part has been discontinued by the supplier. Use # 10514356 as suggested replacement.
