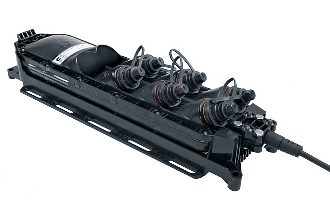

CommScope MST-06MH00-A0300U, Fiber Optic Multiport Service Terminal 6-port 300 Ft

CommScope MST-06MH00-A0300U is an MST series access terminal without splitter/tap, designed for outdoor fiber distribution. It provides 6 hardened full-size SC/APC ports and includes a 300 ft (91 m) stub tail for flexible placement. The terminal uses a gasketed hardened plastic enclosure in black and is qualified to IEC 60529, IP68 + 2 m waterhead for above ground, below ground, and buried environments. Optical performance is optimized for G.657.A1/A2 fiber across 1260 – 1635 nm, with 0.16 dB typical insertion loss at the terminal connector.

Key Features

• MST series access terminal without splitter/tap.
• Includes 6 hardened full-size SC/APC ports for distribution connections.
• Features a 300 ft (91 m) stub tail for flexible terminal placement.
• Gasketed hardened plastic enclosure in black.
• IEC 60529, IP68 + 2 m waterhead protection for above ground, below ground, and buried environmental space.

Technical Specs

Product type	Access terminal, without splitter/tap
Product series	MST
Distribution type	6 ports
Port type	Hardened full-size SC/APC
Port quantity	6
Splitter quantity	0
Stub type	Stub tail
Cable type	Dielectric - Flat - Loose Tube
Cable quantity	1
Cable outer diameter	4.5 x 8.1 mm (0.18 x 0.32 in)
Height	414.5 mm | 16.319 in
Width	129.5 mm | 5.098 in
Depth	84.1 mm | 3.311 in
Enclosure material type	Gasketed hardened plastic
Operating wavelength range	1260 – 1635 nm
Fiber type	G.657.A1/A2
Attenuation cable coefficient, maximum	0.30 dB/km @ 1550 nm | 0.40 dB/km @ 1310 nm
Attenuation terminal connectors, maximum	0.4 dB
Insertion loss, terminal connector, typical	0.16 dB
Return loss, connector, minimum	65 dB
Directivity, minimum	60 dB
Operating temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Relative humidity	5%–100%, condensing
Environmental space	Above ground | Below ground | Buried
UV resistance	UV stabilized
Flammability rating	UL 94 5VA
Qualification standards	IEC 60529, IP68 + 2 m waterhead | Telcordia GR-3120-CORE | Telcordia GR-326-CORE | Telcordia GR-771-CORE
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision
ROHS	Compliant
UK-ROHS	Compliant
Mounting	Handhole | Pedestal | Pole | Strand
Included	Enclosure (1) | Universal mounting bracket (1)
Packaging quantity	1
Packaging type	Box | Carton
Weight, without cable	1.36 kg | 2.998 lb

Applications

• Enables fast, reliable distribution in outdoor networks where a compact access terminal is needed.
• Installs in common placement locations including handholes, pedestals, poles, and strand to match different deployment layouts.
• Works for above ground, below ground, and buried environmental space where IP68 + 2 m waterhead protection is required.
