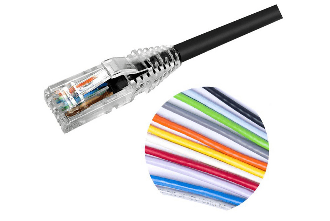

CommScope UC1BBB2-09F015, Cat6 T568B 15FT Yellow Cord

Uniprise® UC1BBB2-09F015 is a Category 6 twisted pair patch cord with U/UTP (Unshielded) construction, stranded 24 AWG Tinned Copper conductors, and a Polyvinyl Chloride jacket. This RJ45 plug to RJ45 plug cord is wired to T568B and meets ANSI/TIA-568.2-D and ISO/IEC 11801 Class E. It fully supports IEEE 802.3bt (Type 4) remote powering, complies with IEC 60512-99-002 unmating under electrical load requirements, and is rated for durability greater than 3000 plug to jack mating cycles. Length is 15 FT. | 4.57 M in Yellow.

Key Features

• Category 6 performance meeting ANSI/TIA-568.2-D and ISO/IEC 11801 Class E.
• U/UTP (Unshielded) twisted pair construction with 4 pairs.
• Stranded 24 AWG Tinned Copper conductors.
• RJ45 plug to RJ45 plug terminations with standard interface features.
• Wired to T568B.
• Fully supports IEEE 802.3bt (Type 4) remote powering and complies with IEC 60512-99-002 unmating under electrical load requirements.
• Supports IEEE 802.3bt Type 4 (90 W) applications and is rated for greater than 3000 plug to jack mating cycles.
• 15 FT. | 4.57 M length in Yellow.

Technical Specs

Manufacturer	Uniprise®
Product type	Twisted pair patch cord
Product series	UC
Diameter over jacket	5.97 mm | 0.235 in
Jacket material	Polyvinyl Chloride
Contact plating material	Gold over nickel
Plug contact material	Phosphor Bronze
Plug housing material	Polycarbonate clear
Contact resistance, maximum	20 mOhm
DC resistance, maximum	0.3 ohm
Insulation resistance, minimum	500 MOhm
Dielectric withstand voltage, RMS, contact-to-contact	1,000 Vac @ 60 Hz
Current rating at temperature	1.5 A @ 20 °C | 1.5 A @ 68 °F
Safety voltage rating	300 V
Plug retention force, minimum	50 N | 11.24 lbf
Plug to jack mating cycles	Complies to IEC 60603-7 series
Environmental space	Non-Plenum
Operating temperature	-10 °C to +60 °C (+14 °F to +140 °F)
Storage temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Flammability rating	UL 94 V-0
Safety standard	ETL | cETL

Applications

• Connect network equipment in closets and racks where patch panels and switches require RJ45 plug terminations.
• Use for workstation drops and device connections that follow T568B wiring schemes.
• Deploy in LAN environments that require compliance with ANSI/TIA-568.2-D and ISO/IEC 11801 Class E.
• Install in IEEE 802.3bt (Type 4) remote powering setups where unmating under electrical load requirements per IEC 60512-99-002 are needed.

Shipping & Availability

• Packaging quantity: 1
• Cable assembly length range (m): 1 – 30
• Cable assembly length range (ft): 1 – 100
• Cable assembly length range (cm): 15 – 999
• Cable assembly length range (in): 6 – 999
