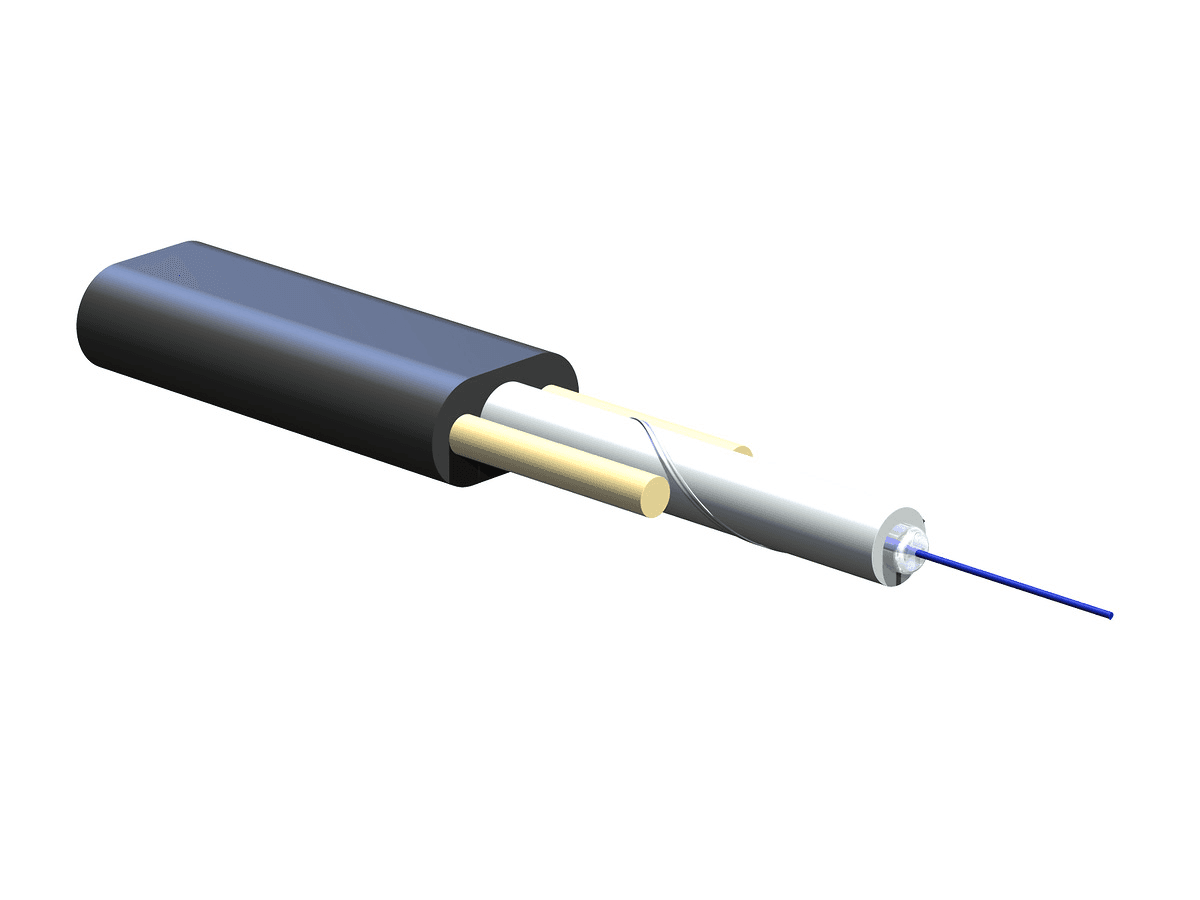

Corning 001EBZ-14101A20, 1 F Single-mode (OS2) SST-Drop™ FREEDM® LSZH Riser Cable

Corning 001EBZ-14101A20, 1 F Single-mode (OS2) SST-Drop™ FREEDM® LSZH Riser Cable

Summary: Corning 001EBZ-14101A20 is a single-mode (OS2) SST-Drop™ FREEDM® LSZH Riser Cable suitable for indoor/outdoor use with LSZH/FRNC flame rating and self-supporting, figure-8 product type.

General Specifications:

• Product Number: 001EBZ-14101A20
• Cable Type: Single Tube
• Environment: Indoor/Outdoor
• Product Type: Self-Supporting, Figure-8
• Fiber Category: Single-mode (OS2)
• Flame Rating: LSZH/FRNC
• Application: Aerial, Direct Buried, Duct, Drop
• Cable geometry: Other

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings: Compact Drop Subunit listed to National Electrical Code® (NEC®) OFNR, CSA FT-4
• Design and Test Criteria: ANSI/ICEA S-110-717, Telcordia GR-20-CORE, Telcordia GR-409-CORE

Environmental Conditions:

• Temperature Range, Installation: -30 °C to 70 °C (-22 °F to 158 °F )
• Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F )
• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F )

Cable Design:

• Central Element: FRNC/LSZH
• Fiber Count: 1
• Outer Jacket Color: Black
• Outer Jacket Material: LSZH/FRNC
• Buffer Tube Color: Blue
• Buffer Tube Diameter: 3 mm (0.12 in)
• Fiber Coloring: Blue
• Color Code Standards: Telcordia

Mechanical Specifications:

• Max. Tensile Strength, Long-Term: 400 N (89.92 lbf)
• Max. Tensile Strength, Short-Term: 1350 N (303.49 lbf)
• Min. Bend Radius Installation: 80 mm (3.15 in)
• Nominal Outer Diameter: 8.1 mmx 4.4 mm (0.32 inx 0.17 in )

Optical Characteristics:

• Fiber Code: E
• Performance Option Code: 01
• Fiber Category: OS2
• Fiber Type: Single-mode (OS2) / 250 µm
• Fiber Name: Single-mode (OS2)
• Maximum Attenuation: 0.4 dB/km / 0.4 dB/km / 0.3 dB/km
• Wavelengths: 1310 nm / 1383 nm / 1550 nm
• Fiber Compliance: ITU-T G.652.D

Dimensions:

• Cable Weight: 46 kg/km (30.91 lb/1000 ft)
