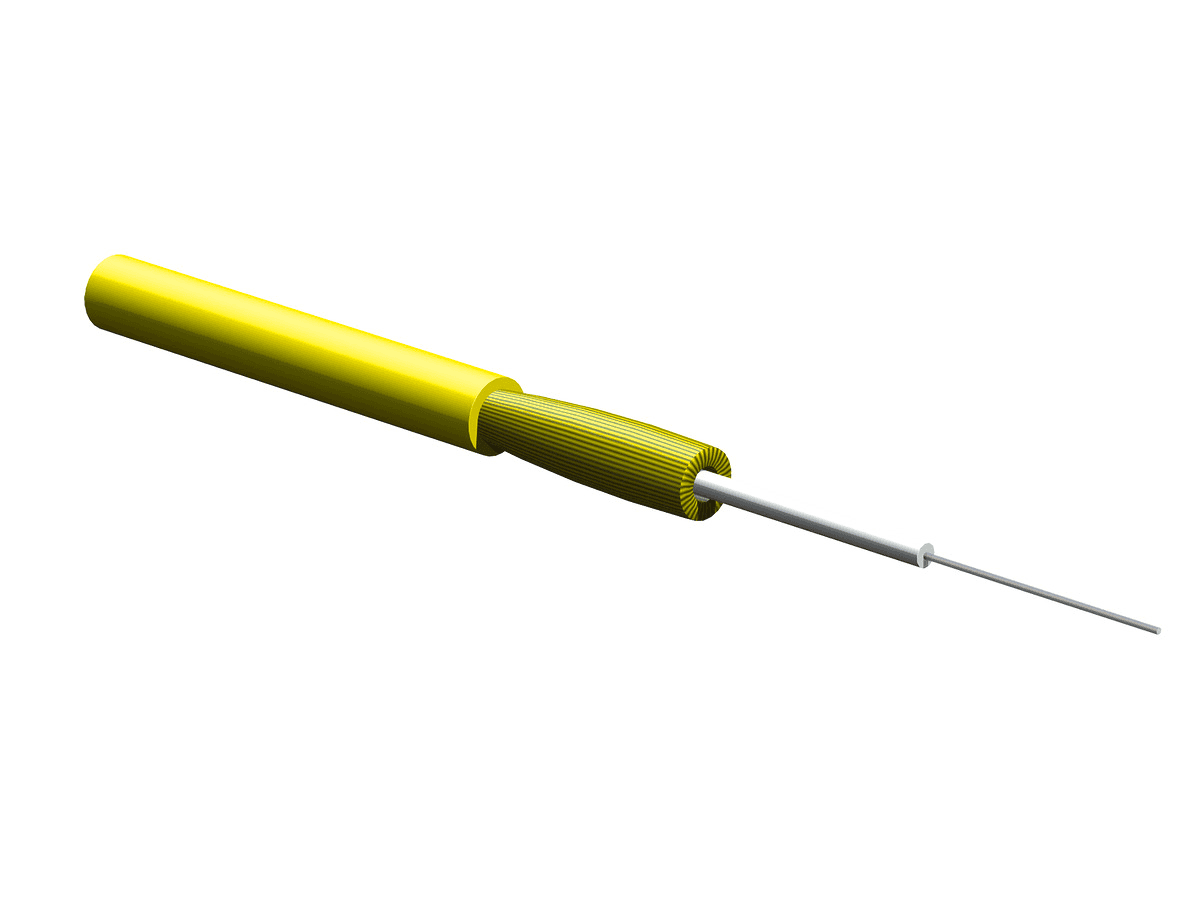

Corning 001K31-31130-24, Riser Single-Fiber Tight-Buffered Cable, 62.5 µm multimode (OM1), 2.9 mm diameter

Corning 001K31-31130-24, Riser Single-Fiber Tight-Buffered Cable, 62.5 µm multimode (OM1), 2.9 mm diameter

Summary: This Corning 001K31-31130-24 Riser Single-Fiber Tight-Buffered Cable is designed for indoor interconnect applications with a 62.5 µm multimode fiber category. It has a flame rating of Riser (OFNR) and features a round cable geometry.

Specifications:

• Product Number: 001K31-31130-24
• Cable Type: Tight-Buffered
• Environment: Indoor
• Product Type: Interconnect
• Fiber Category: 62.5 µm MM (OM1)
• Flame Rating: Riser (OFNR)
• Application: Horizontal
• Cable geometry: Round

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings: National Electrical Code® (NEC®) OFNR, UL-1666, CSA FT-4
• Design and Test Criteria: ICEA S-83-596

Environmental Conditions:

• Temperature Range, Operation: 0 °C to 70 °C (32 °F to 158 °F )
• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F )

Cable Design:

• Fiber Count: 1
• Outer Jacket Color: Orange
• Outer Jacket Material: Flame-retardant
• Tensile Strength Elements and/or Armoring - Layer 1: Dielectric strength members
• Tight Buffer Color: White
• Flame Rating: Riser (OFNR)

Mechanical Specifications:

• Max. Tensile Strength, Long-Term: 12 N (2.7 lbf)
• Max. Tensile Strength, Short-Term: 40 N (8.99 lbf)
• Min. Bend Radius Installation: 5 mm (0.2 in)
• Min. Bend Radius Operation: 5 mm (0.2 in)

Optical Characteristics:

• Fiber Code: K
• Performance Option Code: 30
• Fiber Category: OM1
• Fiber Type: Multimode
• Fiber Name: 62.5 µm MM (OM1)
• Maximum Attenuation: 3.4 dB/km / 1.0 dB/km
• Wavelengths: 850 nm / 1300 nm
• Fiber Compliance: ISO/IEC 11801
• Fiber Core Diameter: 62.5 µm
• Coating diameter: 242 µm
